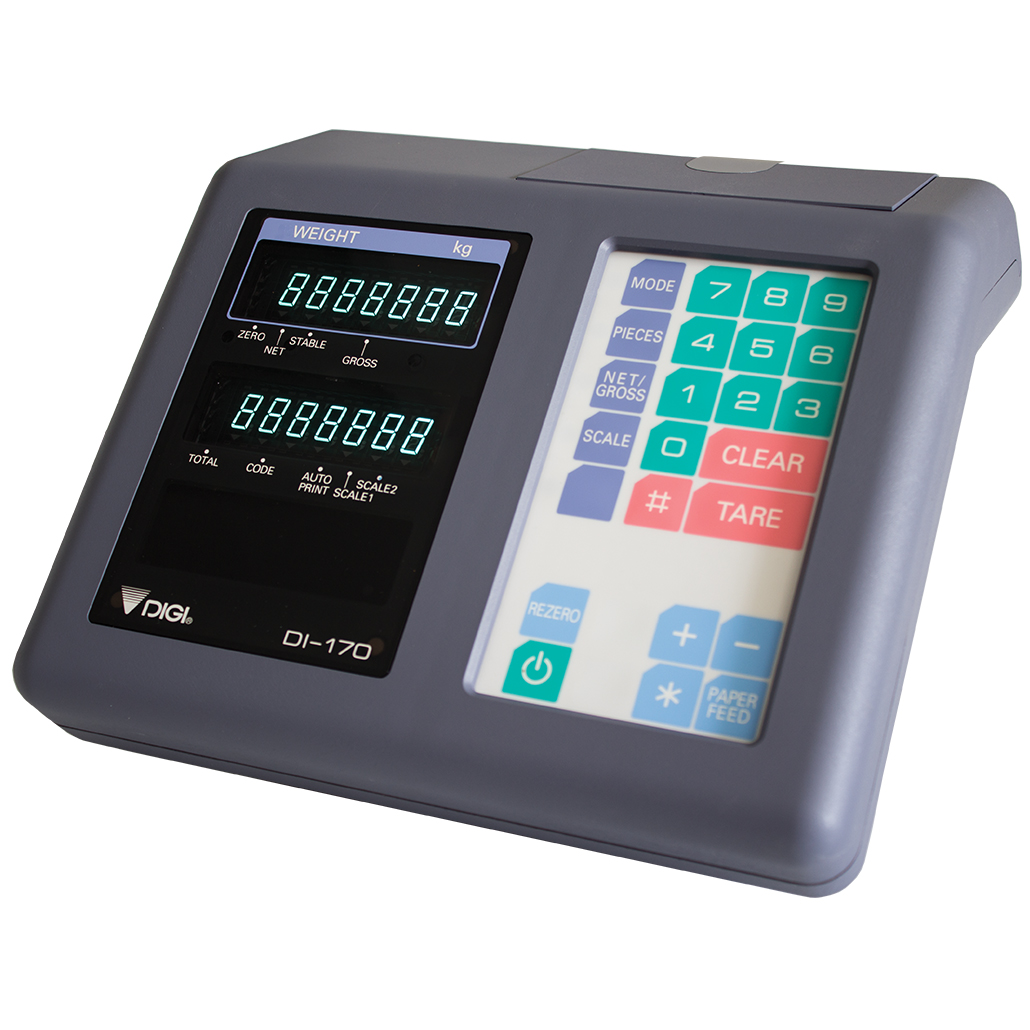

Digital Scale Indicator ENQUIRE NOW BUY NOW
TSDI170
- legal for trade use
- wide variety of mounting options
- two scale capability enables a combination of platform sizes and capacities
- interface for PC and external printer with optional built-in printer
- flicker-free display is easy to read even in dark environments
- water resistant housing
- cumulative addition and subtraction function
- compatible with all Wedderburn weighing platforms
- five set-point output allows automatic control of processes such as batch weighing
| Legal For Trade Use | Yes when connected to an approved scale base |
| MCA# | 1452 |
| Max Approved Divisions | 6,000 |
| Max Divisions (Non-Approved) | 20,000 |
| Number of Ranges | Single Interval |
| Minimum Sensitivity per Division | 0.8µV/d |
| Main Display Size | 15 mm |
| Second Display Size | 15 mm |
| Backlight | None |
| Mounting Options | Wall and Pole |
| Inputs / Outputs | 5 Outputs |
| Setpoints | Yes |
| Communication Protocol | RS232 |
| Built-in Printer | No |
| Counting Function | No |
| Check Weighing Function | No |
| Environment Suitability | Dry |
| Ingress Protection Rating | NA |
| Power Source | 230V |
| Battery Option | No |
| Overall Dimensions (mm) | 280 (W) x 258 (D) x 219 (H) |
Digital Scale Indicator ENQUIRE NOW BUY NOW
TSDI170
The TSDI170 Digital Scale Indicator has an exceptionally clear and flicker-free display so can be easily read even in dark conditions. The five set-point output is ideal for batch weighing, and it's trade approved for use in New Zealand.
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
Digital Scale Indicator
Minimum Sensitivity / Division: 0.8µV/d
Max Approved Divisions: 6000
Overall Dimensions (mm): 280 (W) x 258 (D) x 219 (H)
POA
