Digital Scale Indicator

TSDI166
wishlist

Features
Specifications
Downloads
  • legal for trade use (MCA # 2191)
  • trade approval applies when this indicator is connected to approved weighing bases
  • single or dual range
  • plastic housing
  • large easy to read 23mm high 6 digit, high contrast, LCD with backlight
  • high / ok / low function
  • one touch and digital tare functions
  • kg / lb conversion (available for non-trade use only)
  • can connect to up to 4 x 350Ω load cells
  • zero point recall function (subject to local regulation)
  • data output via RS-232C
  • supplied complete with a wall and desk bracket

OPTIONS

  • built-in rechargeable battery (order code BL8213)
Legal For Trade Use Yes when connected to a trade approved scale base
MCA# 2191
Max Approved Divisions 7,500 d per range
Max Divisions (Non-Approved) 15,000
Number of Ranges Single or dual interval
Minimum Sensitivity per Division 0.66µV/d
Main Display Size 23 mm
Second Display Size NA
Backlight Yes - green
Mounting Options Desk and wall bracket
Inputs / Outputs No
Setpoints Yes (Low, OK, High)
Communication Protocol Limited RS232
Built-in Printer No
Counting Function No
Check Weighing Function Yes
Environment Suitability Dry
Ingress Protection Rating NA
Power Source 230V
Battery Option Yes optional
Overall Dimensions (mm) 200 (W) x 150 (D) x 164 (H)

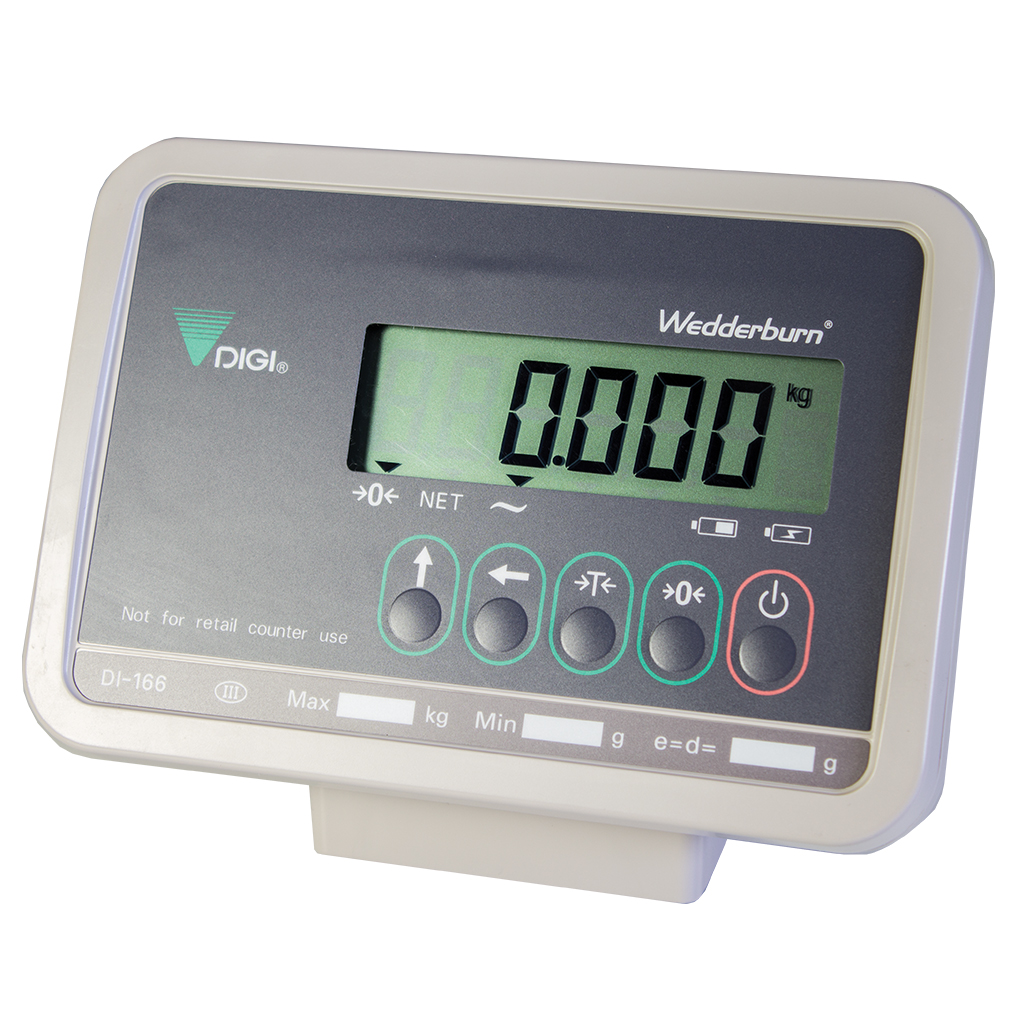

Digital Scale Indicator

TSDI166

The easy to operate yet versatile TSDI166 Digital Scale Indicator is ideal for many weighing applications. It comes complete with check weighing functionality and data output is made easy via RS232C. Legal for trade use in New Zealand when connected to a trade approved base.
