Digital Scale Indicator

WDI702
wishlist

Features
Specifications
Downloads
  • legal for trade use (MCA # 2174). Note; trade approval does not cover counting or animal weighing modes.
  • trade approval applies when this indicator is connected to approved weighing bases
  • single or dual range
  • large easy to read 25mm high LCD display with light blue backlight
  • high / ok / low function
  • counting function
  • unit change function
  • 100 item counting memory
  • 100 item check weighing memory
  • animal weighing function
  • weight accumulation function
  • RS232 serial output
  • can be wall or pole mounted
Legal For Trade Use Yes when connected to a trade approved scale base however NOT when in counting or animal weighing mode
MCA# 2174
Max Approved Divisions 6,000
Max Divisions (Non-Approved) 30,000
Number of Ranges Single or Dual Interval
Minimum Sensitivity per Division 0.4µV/d
Main Display Size 25 mm
Second Display Size NA
Backlight Yes, light blue
Mounting Options Wall and pole bracket
Inputs / Outputs No
Setpoints Yes. Low, OK, High
Communication Protocol RS232
Built-in Printer No
Counting Function Yes
Check Weighing Function Yes
Environment Suitability Dry
Ingress Protection Rating NA
Power Source 230V AC Adaptor
Battery Option Internal rechargeable battery
Overall Dimensions (mm) 200 (W) x 55 (D) x 110 (H)
More Features Available Yes

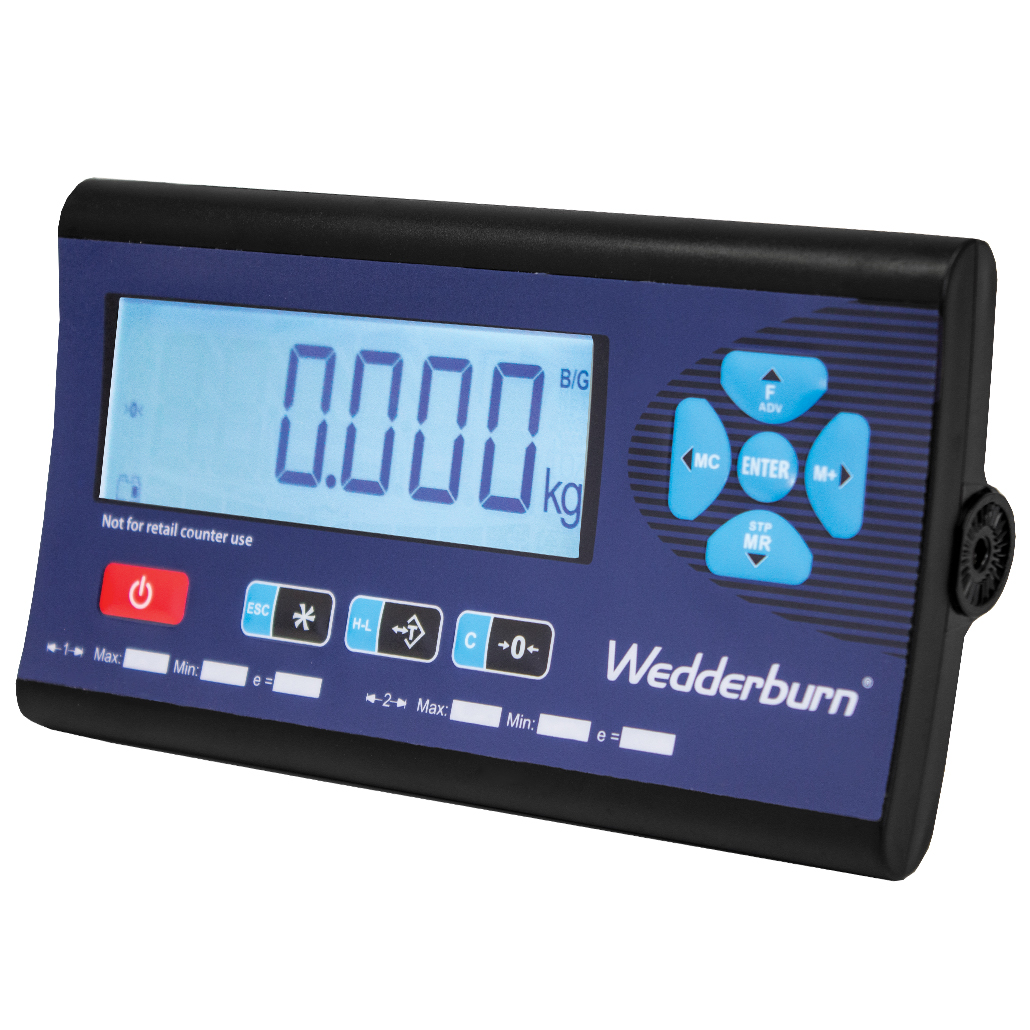

Digital Scale Indicator

WDI702

The easy to operate yet versatile WDI702 digital scale indicator is ideal for many weighing applications and data output is made easy via RS232C. It comes complete with check weighing functionality and is legal for trade use in New Zealand when connected to a trade approved base.
