Digital Scale Indicator

TSDI166SS
wishlist

Features
Specifications
Downloads
  • legal for trade use (MCA # 2191)
  • trade approval applies when this indicator is connected to approved weighing bases
  • single or dual range
  • stainless steel housing with IP68 rating
  • large easy to read 23mm high, 6 digit, high contrast LCD with backlight
  • high / ok / low function
  • one touch and digital tare functions
  • kg / lb conversion (available for non-trade use only)
  • can connect to up to 4 x 350Ω load cells
  • zero point recall function (subject to local regulation)
  • data output via RS-232C
  • supplied complete with a stainless steel wall and desk bracket which allows the indicator to be set at the optimum viewing angle

OPTIONS

  • built-in rechargeable battery (order code BL8213)
Legal For Trade Use Yes when connected to an approved scale base
MCA# 2191
Max Approved Divisions 7,500 per range
Max Divisions (Non-Approved) 15,000
Number of Ranges Single or dual interval
Minimum Sensitivity per Division 0.66µV/d
Main Display Size 23 mm
Second Display Size NA
Backlight Yes - green
Mounting Options Desk and wall bracket
Inputs / Outputs No
Setpoints Yes (Low, OK, High)
Communication Protocol Limited RS232
Built-in Printer No
Counting Function No
Check Weighing Function Yes
Environment Suitability Dry or wet
Ingress Protection Rating IP68
Power Source 230V
Battery Option Yes optional
Overall Dimensions (mm) 220 (W) x 83 (D) x 164 (H)

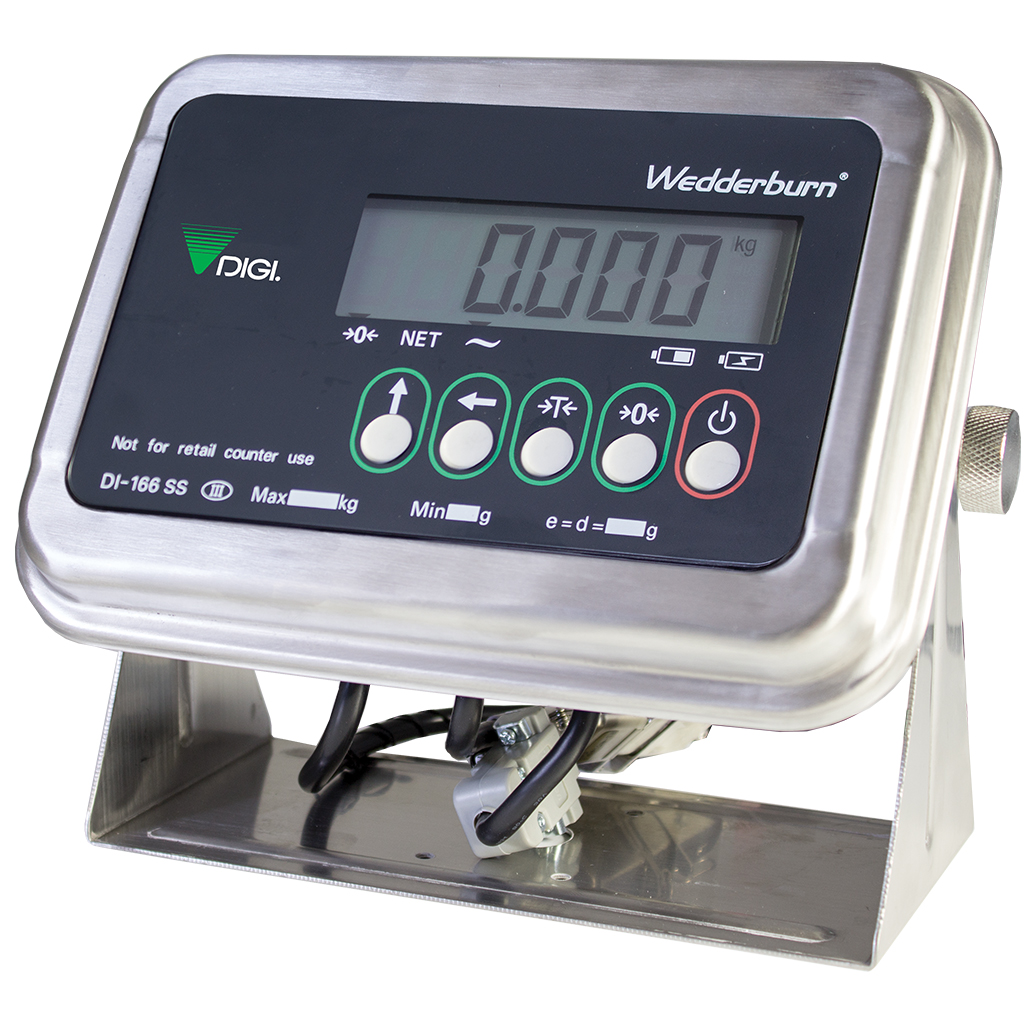

Digital Scale Indicator

TSDI166SS

The TSDI166SS Digital Scale Indicator features robust stainless steel housing suitable for use in wet environments and has an ingress protection rating of IP68. The stainless steel mounting bracket provides for optimal viewing of the easy to read large LCD which is backlit and data output is made easy via RS232C. Trade approved in New Zealand when connected to a trade approved base.
