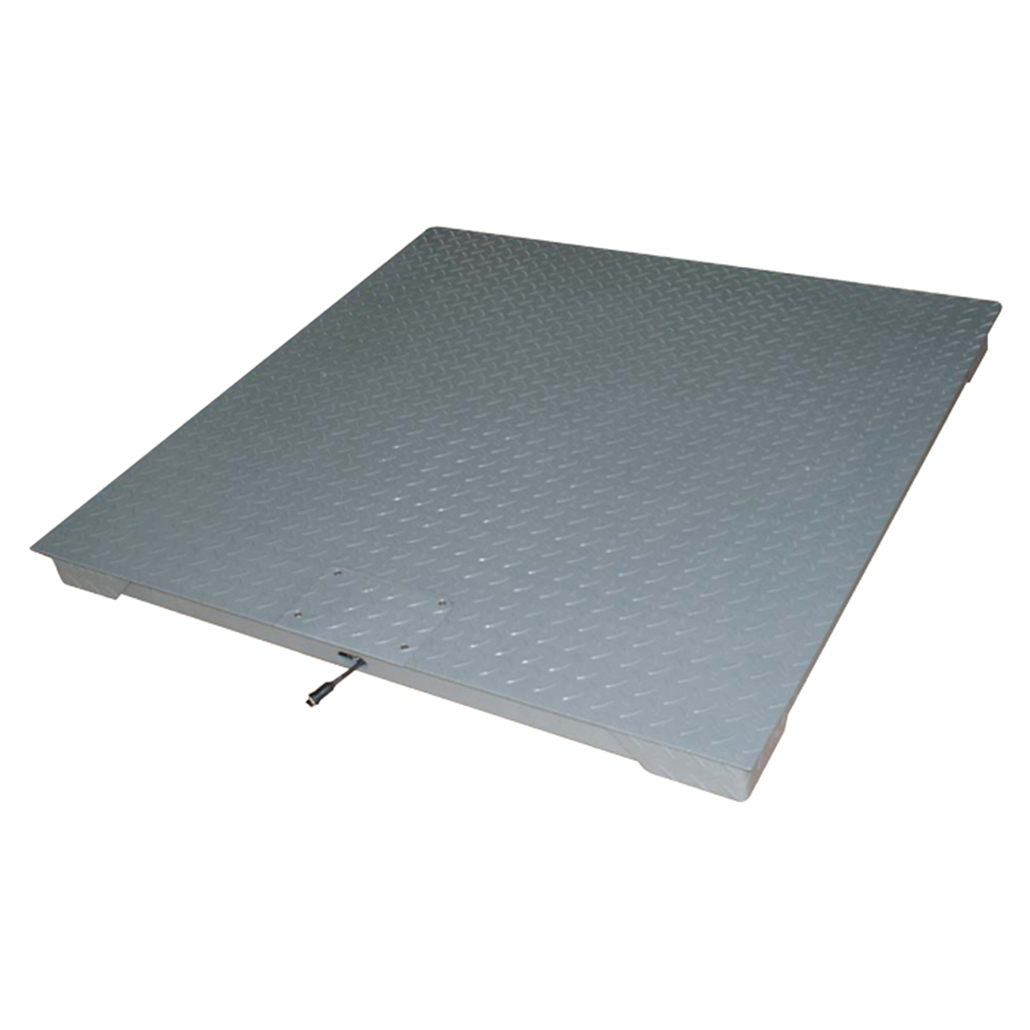

Mild Steel Scale Base ENQUIRE NOW BUY NOW
WS01P0808MC0500
- legal for trade use (TS1505.5)
- trade approval applies when connected to an approved indicator
- maximum approved divisions 3000 d/range
- robust mild steel construction with powder coated finish
- IP67 protection rating
- heavy duty low profile weigh platform (110mm overall height )
- 4 x 500kg IP-67 alloy tool steel load cells
- ideal for industrial applications and forklift loading
| Legal for Trade Use |
Yes when connected to an approved indicator (TS1505.5) |
| Capacity Choices | Please select preferred option from Variations |
| Base Shape | Square |
| Base Material | Mild steel |
| Base Cover Material | Mild steel |
| Frame Design | Single frame |
| Platter Lift Mechanism | Not available |
| Loading Ramps | Not available |
| Environment Suitability | Dry |
| Ingress Protection Rating | IP67 |
| Net Weight of Bars | 45 kg |
Mild Steel Scale Base ENQUIRE NOW BUY NOW
WS01P0808MC0500
Solid and robust, these industrial scale platforms have a footprint of only 800 mm x 800 mm. They’re ideal for industrial weighing applications and forklift loading, incorporate IP67 rated load cells and are trade approved in New Zealand.
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
WS01P0808MC05000300
Platform Size (mm): 800 (W) x 800 (D) x 110 (H)
Maximum Capacity: 300 kg
Graduation Interval: 0.1 kg
POA
WS01P0808MC05000600
Platform Size (mm): 800 (W) x 800 (D) x 110 (H)
Maximum Capacity: 600 kg
Graduation Interval: 0.2 kg
POA
WS01P0808MC05001500
Platform Size (mm): 800 (W) x 800 (D) x 110 (H)
Maximum Capacity: 1500 kg
Graduation Interval: 0.5 kg
POA
