Dual Frame Scale Base ENQUIRE NOW BUY NOW
WS004SBHC
- legal for trade use (TS1505.5)
- trade approval applies when connected to an approved indicator
- maximum approved divisions 3000 d/range
- heavy duty dual frame system
- impact protection system
- shock loading protection for horizontal force
- up-lift protection - guards against separation
- ball mounted floating deck - side protection
- 4 x IP67 nickel plated load sensors
- ideal for heavy industrial applications and forklift loading
- 6mm checker plate surface
- suitable for in-ground installation
OPTIONS:
- forklift channels (part code # WS004SSFC)
- freestanding display pole (part code # WS004FSPOLE)
- stainless steel version (Order Code WS004SBHCSS)
| Legal for Trade Use |
Yes when connected to an approved indicator (TS1505.5) |
| Capacity Choices | Please select preferred option from Variations |
| Base Shape | Square |
| Base Material | Mild steel |
| Base Cover Material | Mild steel |
| Frame Design | Dual frame |
| Platter Lift Mechanism | Not available |
| Loading Ramps | Not available |
| Environment Suitability | Dry |
| Ingress Protection Rating | IP67 |
Dual Frame Scale Base ENQUIRE NOW BUY NOW
WS004SBHC

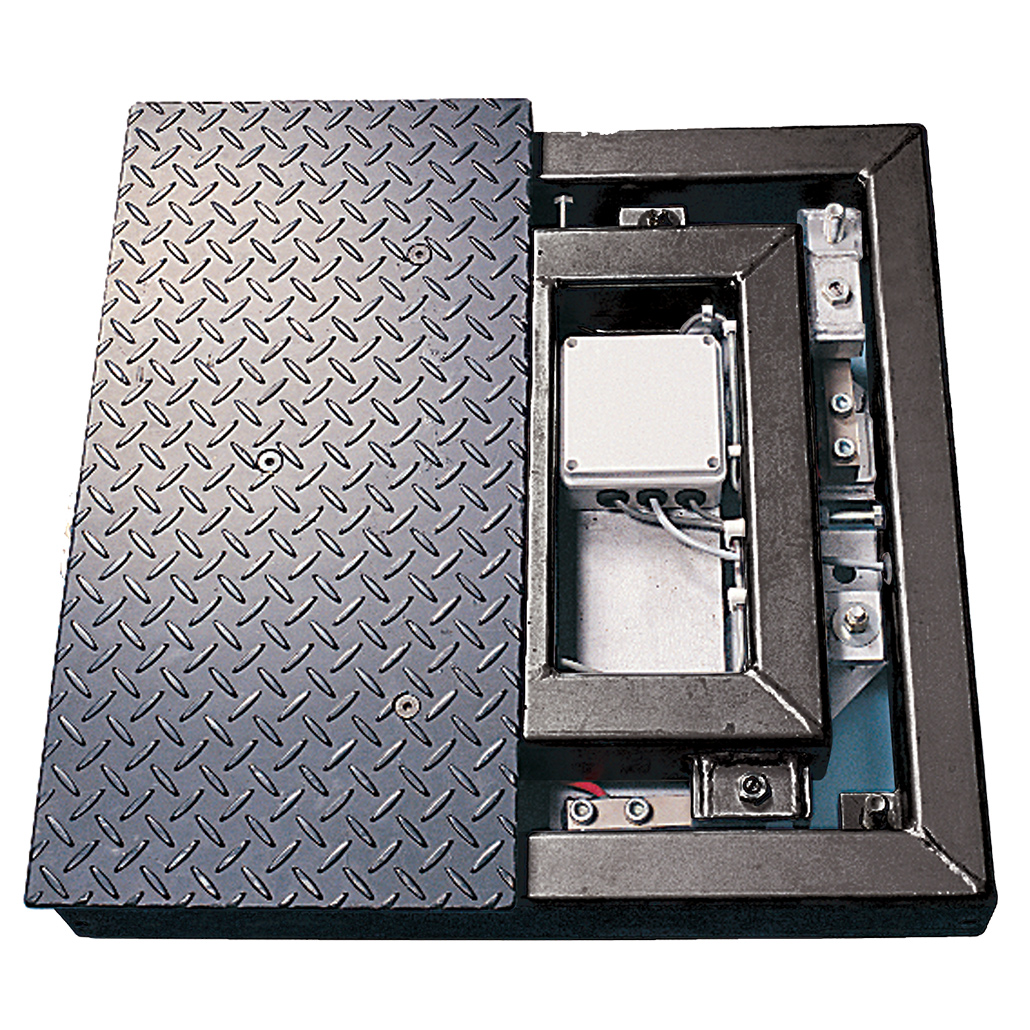

This heavy duty Scale Base features a dual frame, impact protection system and IP67 protection rating making it ideal for heavy industrial weighing applications. This robust Scale Platform can be installed in-ground (pit mounted). When coupled with an approved Scale Indicator, it is legal for trade use.
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
WS004SBHC1.5T
Platform Size (mm): 1200 (W) x 1200 (D) x 110 (H)
Maximum Capacity: 1500 kg
Graduation Interval: 0.5 kg
POA
WS004SBHC003T
Platform Size (mm): 1200 (W) x 1200 (D) x 110 (H)
Maximum Capacity: 3000 kg
Graduation Interval: 1 kg
POA
