Wide Belt In-Line Weigh Labeller

TSWI700
wishlist

Features
Specifications
Downloads
  • user friendly, full colour TFT touch screen display
  • printing by 80mm wide, 300 DPI thermal head providing high print resolution and true type window print fonts
  • capability to process trays or packs, wide edge leading to a maximum width of 350mm
  • standalone 304 stainless steel open frame design conveyor, enhanced ease of cleaning and hygiene, IP-65 rated
  • quick release conveyors & belts, removed easily without tools
  • under/over setpoint linked to label print on in-range products (selectable for each PLU)
  • on board help screens & videos includes programming, label roll changes, maintenance and fault finding
  • Windows XP embedded, 20Gb hard drive, 256 MB Ram, Intel Celeron processor
  • USB memory back up

OPTIONS

  • additional bottom labeller for promotional or supplementary labels to show ingredients, barcode or even the application of the primary price and barcode label
  • 108mm, 300 DPI thermal head
  • TSHI700.NET back office data maintenance controlling software via Ethernet network
  • TSHI700.NET back office data maintenance controlling software via Ethernet

For further specifications, please download the brochure or contact your local Wedderburn team.

Legal for Trade Use No
Maximum Weighing Capacity 6 kg x 2 g
Package Size (mm) Width: 40 - 350
Length: 80 - 300
Height: 180
Number of Labelling Units Configurable
Label Width (mm) 30 - 120
Label Height (mm) 28 - 150
Print Method Direct thermal 300 dpi
Label Application Method 10 finger touch applicator

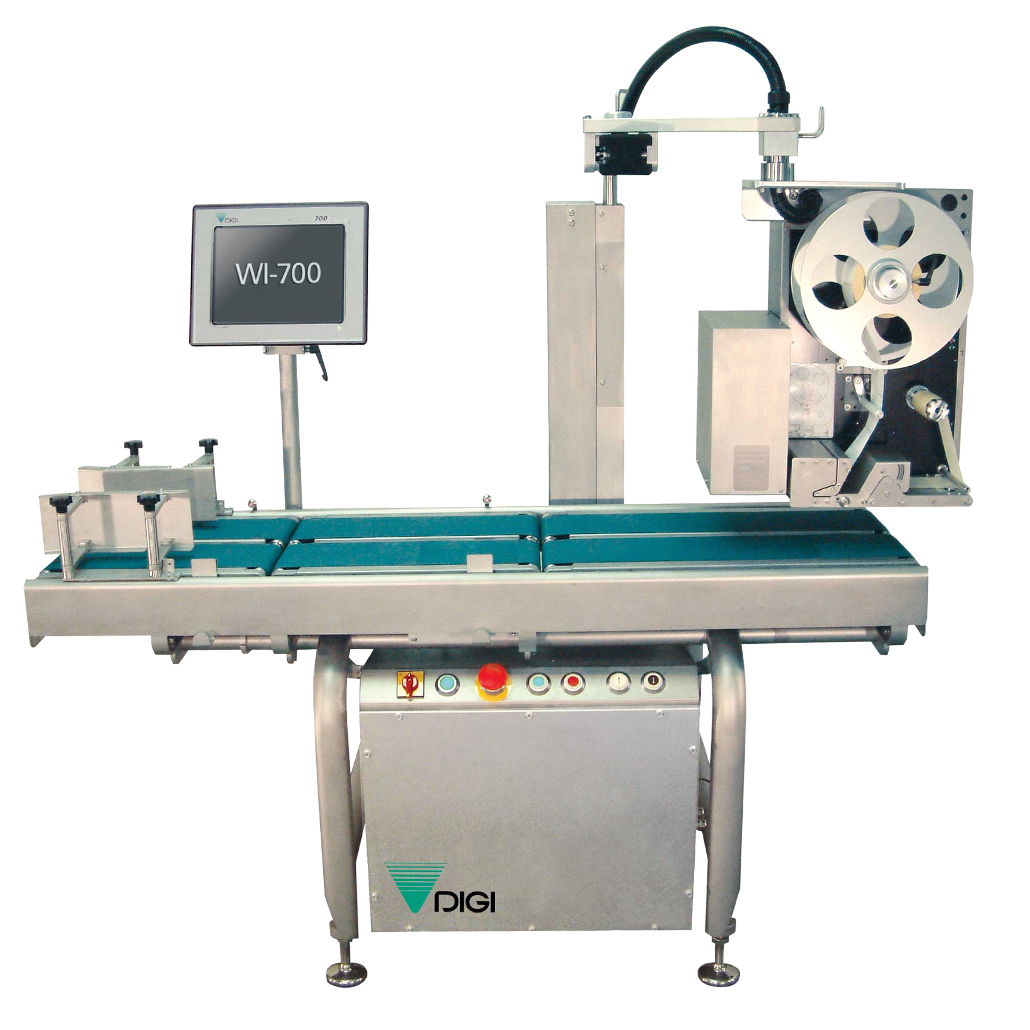

Wide Belt In-Line Weigh Labeller

TSWI700

PC Based in-line weigh labeller which processes packages as wide as 350mm. Its modular design allows for additional top, bottom or promotional labellers to be added at any time.
