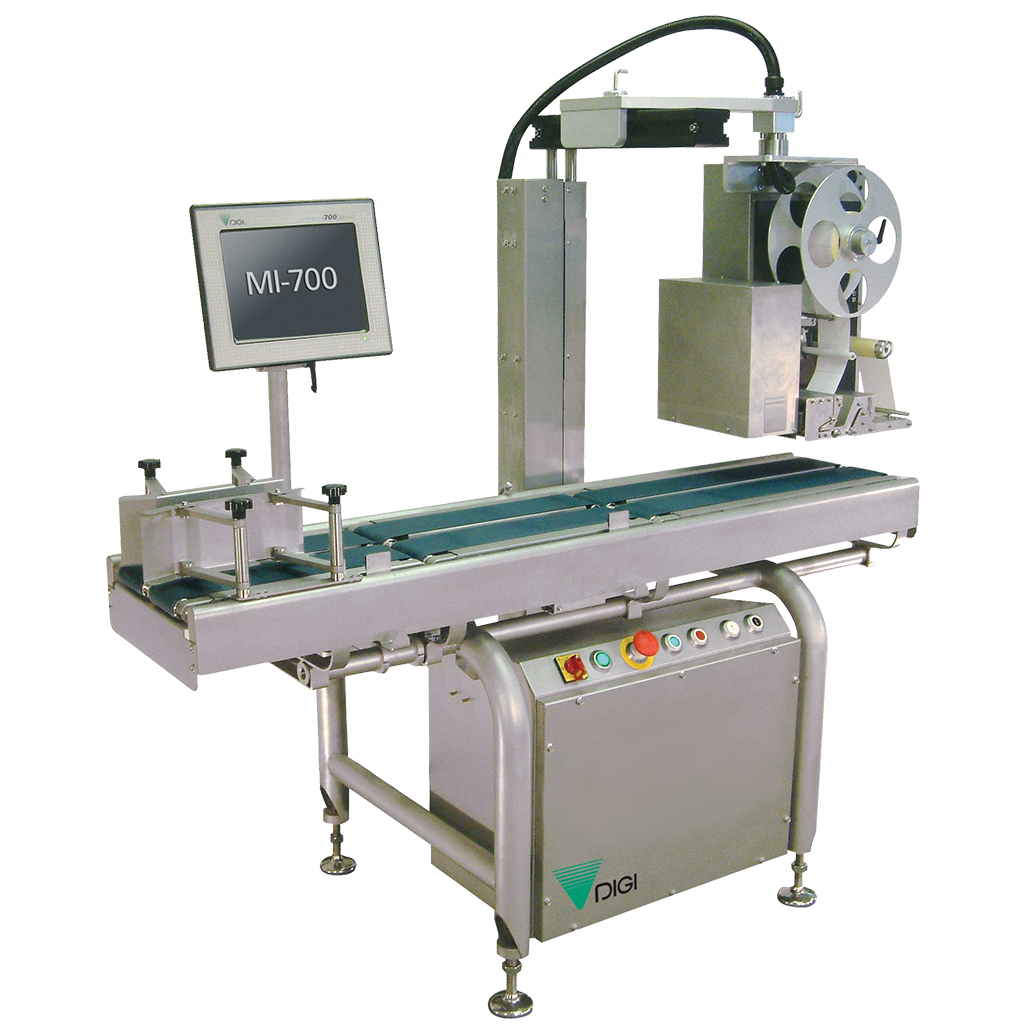

In-Line Weigh Labeller ENQUIRE NOW BUY NOW
TSMI700
- user friendly, full colour TFT touch screen display
- printing by 80mm wide, 300 DPI thermal head providing high print resolution and true type window print fonts
- stand alone 304 stainless steel open frame design conveyor, enhanced ease of cleaning and hygiene, IP-65 rated
- quick release conveyors & belts, removed easily without tools
- under/over setpoint linked to label print on in-range product (selectable for each PLU)
- on board help screens & videos include programming, label roll changes, maintenance and fault finding
- Windows XP embedded, 20Gb hard drive, 256 MB Ram, Intel Celeron processor
- USB memory back up
OPTIONS
- single or twin sweep arm rejecter station
- 108mm, 300 DPI thermal head
- V deck conveyors for round shaped products
- TSHI700.NET back office data maintenance controlling software via Ethernet network
For further specifications, please download the brochure or contact your local Wedderburn team.
| Legal for Trade Use | No |
| Maximum Weighing Capacity | 6 kg x 2 g |
| Package Size (mm) | Width: 40 - 250 Length: 80 - 300 Height: 180 |
| Number of Labelling Units | Configurable |
| Label Width (mm) | 30 - 120 |
| Label Height (mm) | 28 - 150 |
| Print Method | Direct thermal 300 dpi |
| Label Application Method | 10 finger touch applicator |
In-Line Weigh Labeller ENQUIRE NOW BUY NOW
TSMI700
PC based mid-speed automatic In-Line Weigh Labeller featuring USB memory back up, stainless steel open frame design conveyor and on board help screens and videos for ease of use.
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
In-Line Weigh Labeller
In-Line Labeller Weighing Capacity: 6 kg x 2 g
Maximum Package Size: 250 (W) x 300 (L) x 180 (H)mm
Maximum Label Size: 120 (W) x 150 (H)mm
POA
