  • user friendly, full colour TFT touch screen display
  • printing by 80mm wide, 300 DPI thermal head providing high print resolution, and true type window print fonts
  • modular 304 stainless steel open frame design conveyor, enhanced ease of cleaning and hygiene, IP-65 rated
  • quick release conveyors & belts, removed easily without tools
  • on board help screens & videos includes programming, label roll changes, maintenance & fault finding
  • Windows XP embedded, 20Gb hard drive, 256 M Ram, Intel Celeron processor
  • USB memory back up

OPTIONS

  • additional top or bottom labellers for promotion or supplementary labels to show ingredients or similar information
  • 108mm, 300 DPI thermal head
  • interchangeable V Deck conveyor for round shaped products
  • TSHI700.NET back office data maintenance controlling software via Ethernet network

For further specifications, please download the brochure or contact your local Wedderburn team.

Legal for Trade Use No
Package Size (mm) Width: 40 - 250
Length: 80 - 300
Height: 180
Number of Labelling Units Configurable
Label Width (mm) 30 - 120
Label Height (mm) 28 - 150
Print Method Direct thermal 300 dpi
Label Application Method 10 finger touch applicator

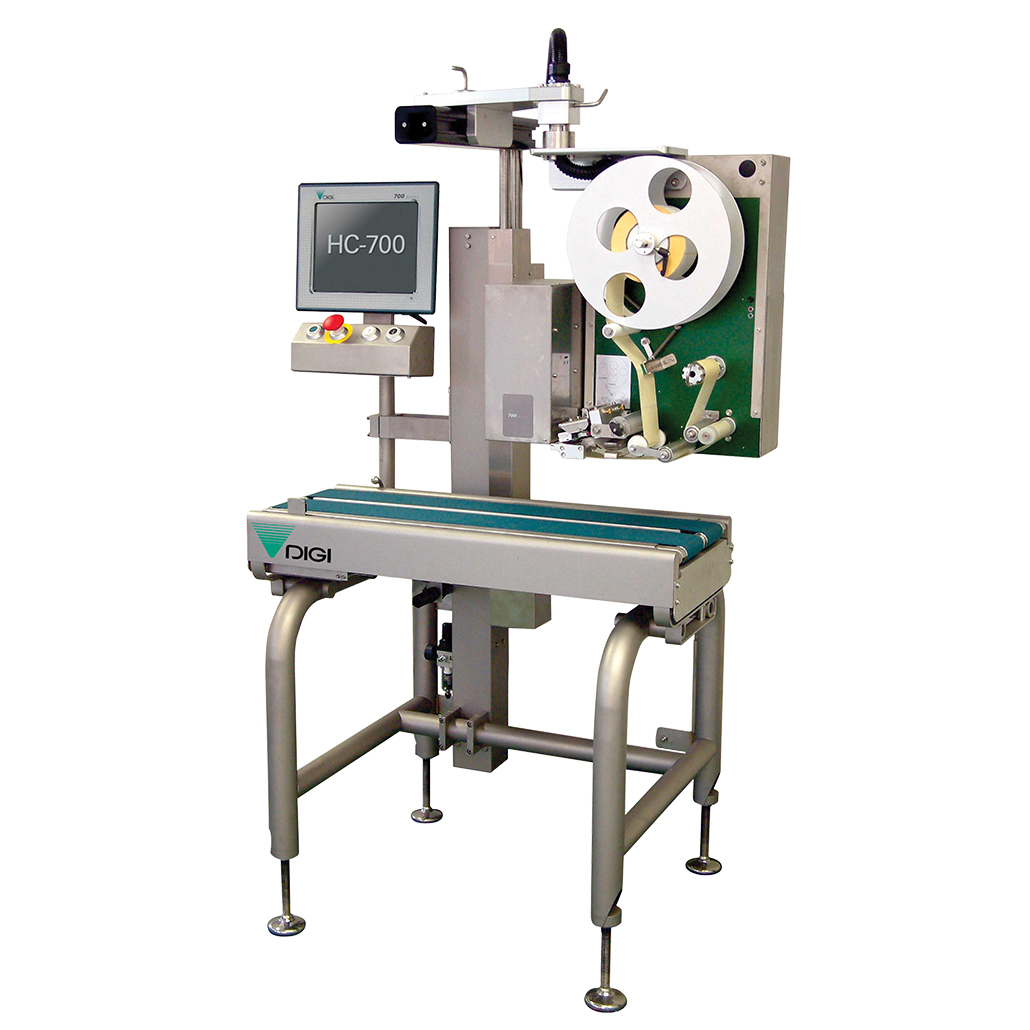

High Speed In-Line Labeller

TSHC700

PC based high-speed In-Line Auotmatic Labeller for high resolution label printing. Featuring a full colour TFT touch screen display and on board help videos. The sturdy stainless steel frame is designed for ease of cleaning and hygiene. IP65 ingress protection rating.
