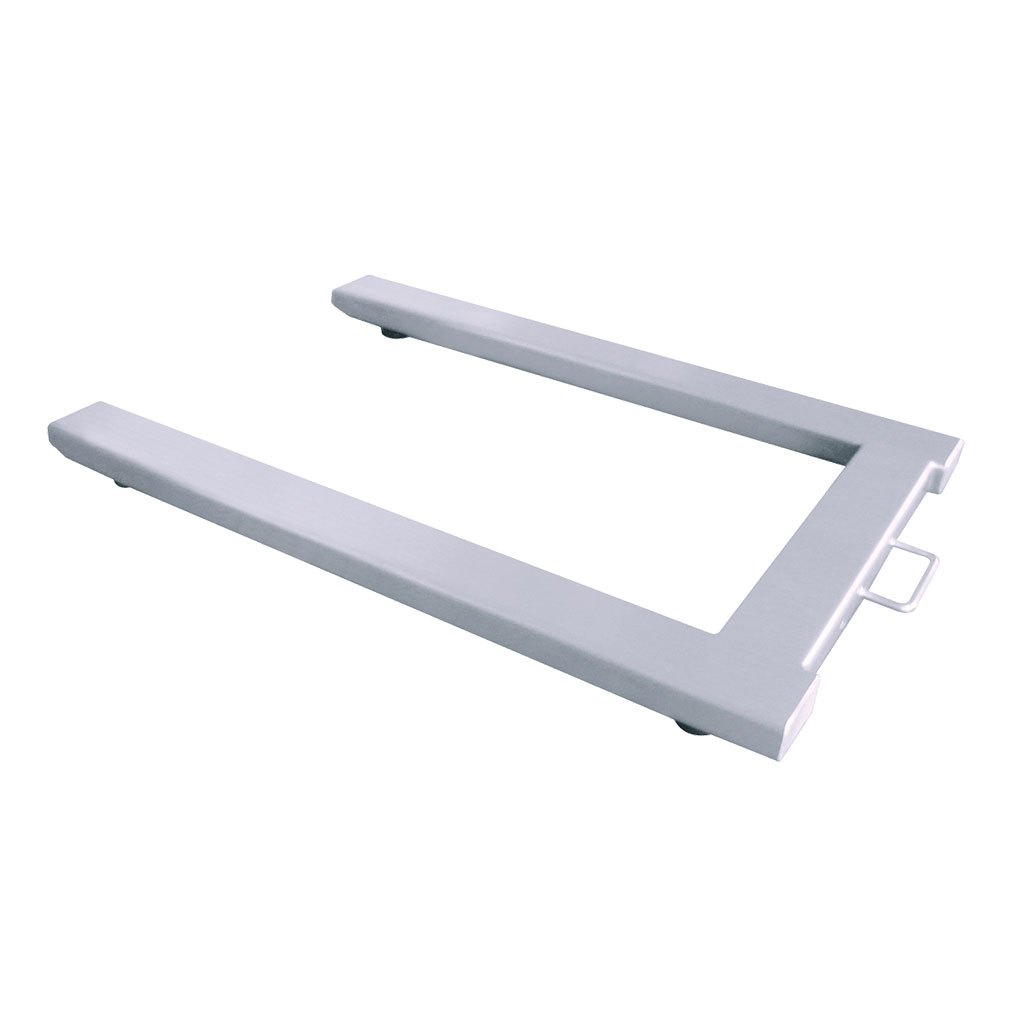

Stainless Steel U Shaped Scale Base ENQUIRE NOW BUY NOW
WS01U1012SF1000
- legal for trade use (TS1505.5)
- trade approval applies when connected to an approved indicator
- maximum approved divisions 3000 d/range
- solid robust 304 stainless steel construction with polished finish
- IP68 protection rating
- heavy duty, portable low profile U shaped weigh platform (120mm overall height)
- stainless steel ball and cup swivel mount levelling legs
- 4 x 1000kg IP68 rated, hermetically sealed stainless steel load cells
- ideal for harsh industrial applications with pallet jack and forklift loading
Dimensions:
| External Size (mm) | 990 (W) x 1250 (D) x 120 (H) |
| Internal Size (mm) | 750 (W) x 1110 (D) |
Specifications:
| Legal for Trade Use |
Yes when connected to an approved indicator (TS1505.5) |
| Capacity Choices | Please select preferred option from Variations |
| Base Shape | U-Shaped |
| Base Material | Stainless steel |
| Base Cover Material | Stainless steel |
| Frame Design | Single frame |
| Platter Lift Mechanism | Not available |
| Loading Ramps | Not available |
| Environment Suitability | Dry, Wet |
| Ingress Protection Rating | IP68 |
| Net Weight of Scale | 70 kg |
Stainless Steel U Shaped Scale Base ENQUIRE NOW BUY NOW
WS01U1012SF1000
Solid and robust u-shaped Scale Bases suitable for harsh heavy duty weighing applications. These industrial strength Platform Scales bases are constructed from stainless steel and feature IP68 rated stainless steel load cells. When coupled with an approved Scale Indicator, they are legal for trade use.
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
WS01U1012SF10000600
Platform Size (mm): 990 (W) x 1250 (D) x 120 (H)
Maximum Capacity: 600 kg
Graduation Interval: 0.2 kg
POA
WS01U1012SF10001500
Platform Size (mm): 990 (W) x 1250 (D) x 120 (H)
Maximum Capacity: 1500 kg
Graduation Interval: 0.5 kg
POA
WS01U1012SF10003000
Platform Size (mm): 990 (W) x 1250 (D) x 120 (H)
Maximum Capacity: 3000 kg
Graduation Interval: 1 kg
POA
