Stainless Steel Scale Base ENQUIRE NOW BUY NOW
WS01P0808SF0500
- legal for trade use (TS1505.5)
- trade approval applies when connected to an approved indicator
- maximum approved divisions 3000 d/range
- solid robust 304 stainless steel construction with polished finish
- heavy duty low profile IP-68 rated weigh platform
- 4 x 500 kg IP-68 rated, hermetically sealed stainless steel load cells
- ideal for harsh industrial applications and forklift loading
| Legal for Trade Use |
Yes when connected to an approved indicator (TS1505.5) |
| Capacity Choices | Please select preferred option from Variations |
| Base Shape | Square |
| Base Material | Stainless steel |
| Base Cover Material | Stainless steel |
| Frame Design | Single frame |
| Platter Lift Mechanism | Not available |
| Loading Ramps | Not available |
| Environment Suitability | Dry, Wet, Harsh |
| Ingress Protection Rating | IP68 |
| Net Weight of Bars | 55 kg |
Stainless Steel Scale Base ENQUIRE NOW BUY NOW
WS01P0808SF0500

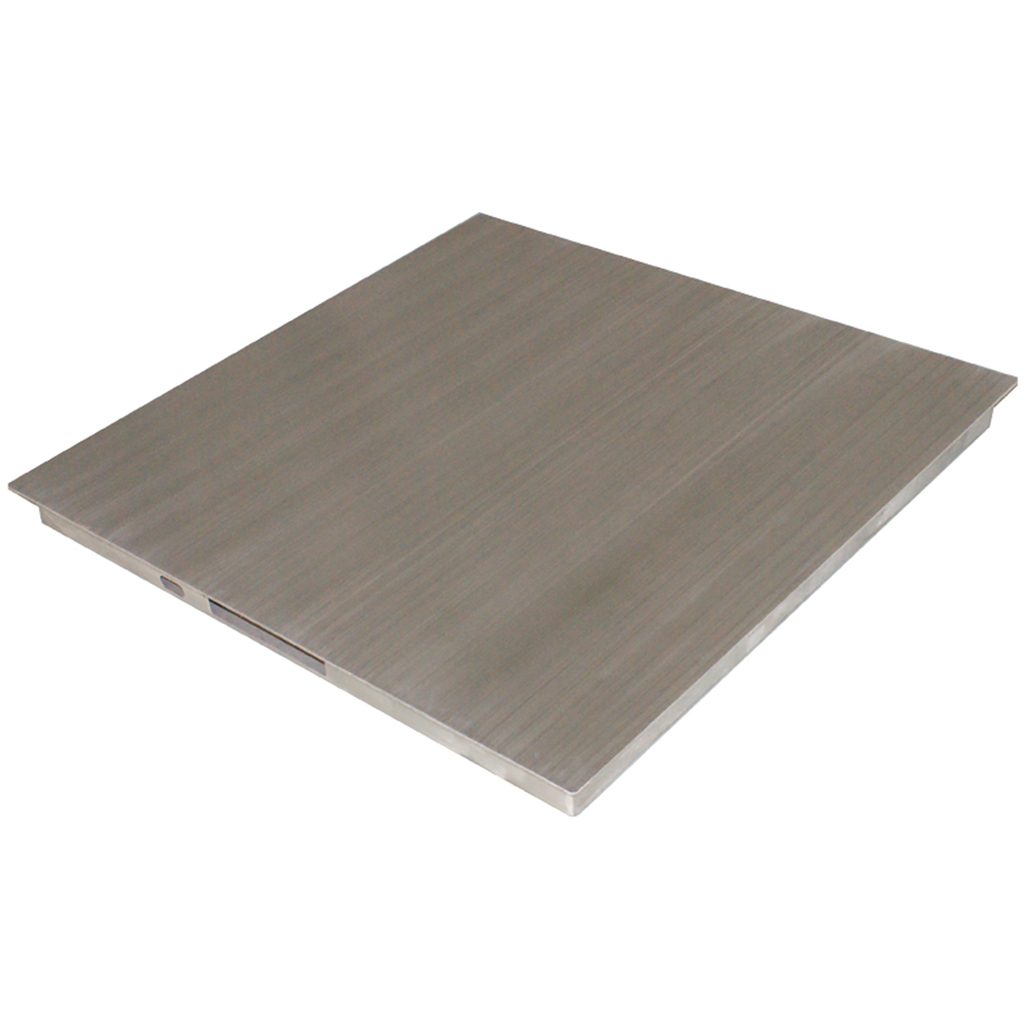

This 800mm x 800mm stainless steel industrial Scale Base includes hermetically sealed IP68 rated stainless steel loadcells. These Scale Platforms are ideal for weighing applications in harsh industrial environments. Weighing capacities from 300 kg to 1,500 kg.
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
WS01P0808SF05000300
Platform Size (mm): 800 (W) x 800 (D) x 120 (H)
Maximum Capacity: 300 kg
Graduation Interval: 0.1 kg
POA
WS01P0808SF05000600
Platform Size (mm): 800 (W) x 800 (D) x 120 (H)
Maximum Capacity: 600 kg
Graduation Interval: 0.2 kg
POA
WS01P0808SF05001500
Platform Size (mm): 800 (W) x 800 (D) x 120 (H)
Maximum Capacity: 1500 kg
Graduation Interval: 0.5 kg
POA
