Digital Crane Scale ENQUIRE NOW BUY NOW

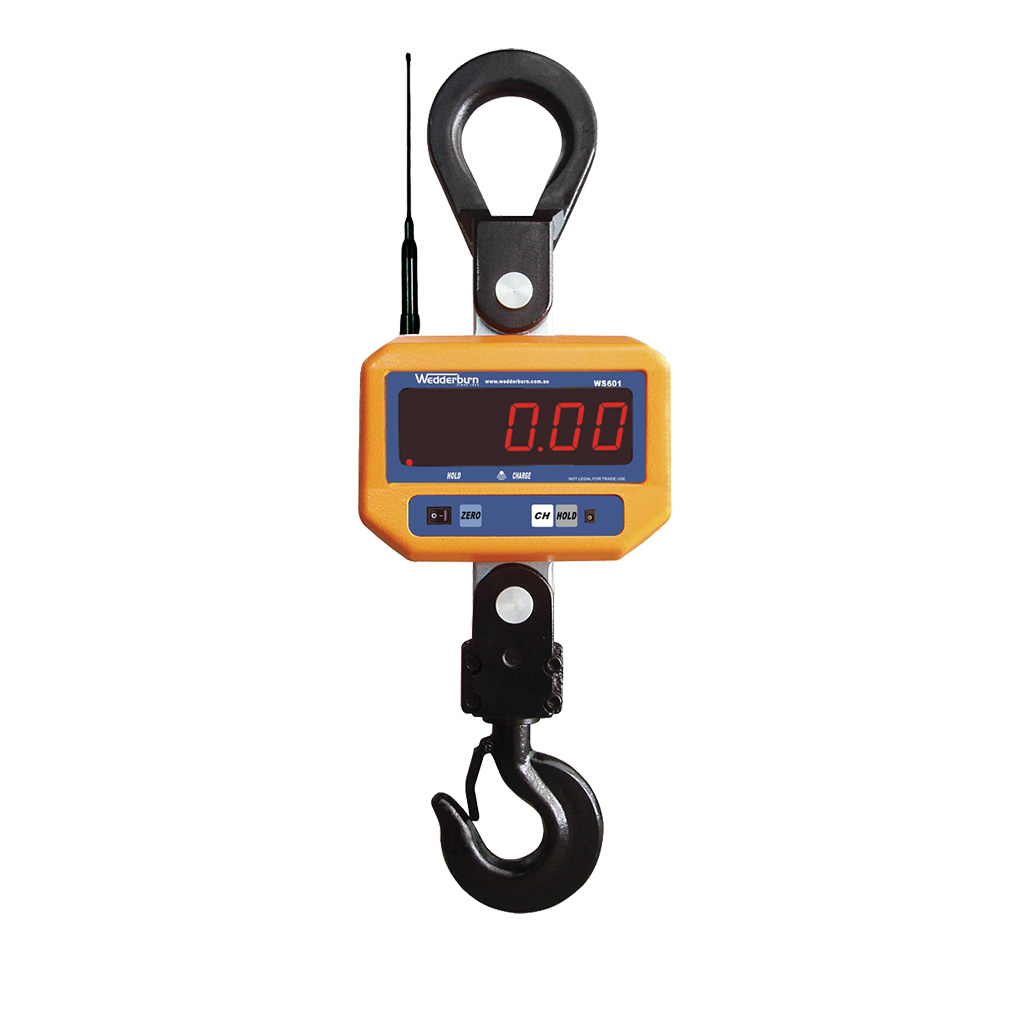

WS601RF
- super bright 45 mm high red LED display
- cast aluminium alloyed housing
- patented load cell & overload protection design
- 360 degree swivel hook
- safe overload of 250% of rated capacity
- ultimate overload of 500% of rated capacity
- built-in rechargeable battery, approximately 150 hours usage
- low battery power indication
- high accuracy up to 1/3000
- remote controller
OPTIONS
- Variety of RF remote displays available (refer to page 2 of the product brochure under “downloads”). Remote displays are factory fitted so must be ordered at the same time you purchase your WS601RF Crane Scale
- Dot Matrix Printer with RS232 output
Overall dimensions and weight of scales varies with capacity. Please consult our product brochure for details.
| Legal for Trade Use | No |
| Capacity Choices | Please select preferred option from Variations |
| Scale Type | Overhead Weighing |
| Display Type | Digital Red LED |
| Display Size | 45 mm high |
| Display Range | Single |
| 2nd Remote Display |
Optional factory fitted remote displays available. Must be ordered when initially purchasing your WS601RF Crane Scale. |
| Weighing Units | kg |
| Hook and Shackle Included | Yes |
| Hook Type | Swivel |
| Safe Overload Rating | 250% of rated capacity |
| Ultimate Overload Rating | 500% of rated capacity |
| RF Functionality | Yes |
| Remote Control Included | Optional |
| Power | Rechargeable Battery |
| Environment Suitability | Dry |
What does Ultimate Overload mean?
A Crane Scale should never be loaded beyond its safe overload as from this point on the scale is susceptible to damage. The Ultimate Overload limit is the point at which the hook, top eye or housing will begin to fail and the load will no longer be supported. Loading a Crane Scale past its Ultimate Overload limit can result in serious injury, death and or damage to property.
Is this Crane Scale legal for trade use in New Zealand?
No, under New Zealand's Trade Measurement Standards, this scale should NOT be used where a trade approved scale is required.
Can I buy the WS601RF Crane Scale now and add a Remote Display later?
No, the Remote Displays for WS601RF must be ordered at the same time as the WS601RF itself. Componentry and configuration is unique for each display and must be factory fitted.
Digital Crane Scale ENQUIRE NOW BUY NOW
WS601RF
WS601RF Crane Scales are engineered for safe overhead weighing and tension tasks. They come in several different capacities up to 15 ton (15,000 kg) and have the option of various factory-fitted remote weight indicators.
The WS601RF Crane Scale delivers a safe, precise and efficient weighing solution for any industrial environment that prohibits operator access or visibility to the scale hook.
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
WS601RF5T
Maximum Capacity: 5000 kg
Graduation Interval: 2 kg
POA
WS601RF7.5T
Maximum Capacity: 7500 kg
Graduation Interval: 2 kg
POA
WS601RF10T
Maximum Capacity: 10000 kg
Graduation Interval: 5 kg
POA
WS601RF15T
Maximum Capacity: 15000 kg
Graduation Interval: 5 kg
POA
