Triple range capacity:
0 - 1,500 kg x 0.5 kg
1,500 kg - 3,000 kg x 1 kg
3,000 kg - 5,000 kg x 2 kg
Legal for Trade Use | No |
Scale Type | Overhead Weighing |
Display Type | Digital Red LED |
Display Size | 45 mm high |
Display Range | Triple |
2nd Remote Display | No |
Weighing Units | kg |
Hook and Shackle Included | Yes |
Hook Type | Swivel |
Safe Overload Rating | 250% of rated capacity |
Ultimate Overload Rating | 500% of rated capacity |
RF Functionality | No |
Remote Control Included | Yes |
Power | Rechargeable Battery |
Environment Suitability | Dry |
Overall Dimensions (mm) | 270 (W) x 205 (D) x 813 (H) |
Net Weight of Scale | 80 kg |
What does Ultimate Overload mean?
A Crane Scale should never be loaded beyond its safe overload as from this point on the scale is susceptible to damage. The Ultimate Overload limit is the point at which the hook, top eye or housing will begin to fail and the load will no longer be supported. Loading a Crane Scale past its Ultimate Overload limit can result in serious injury, death and or damage to property.
Is this Crane Scale legal for trade use in New Zealand?
No, under New Zealand's Trade Measurement Standards, this scale should NOT be used where a trade approved scale is required.

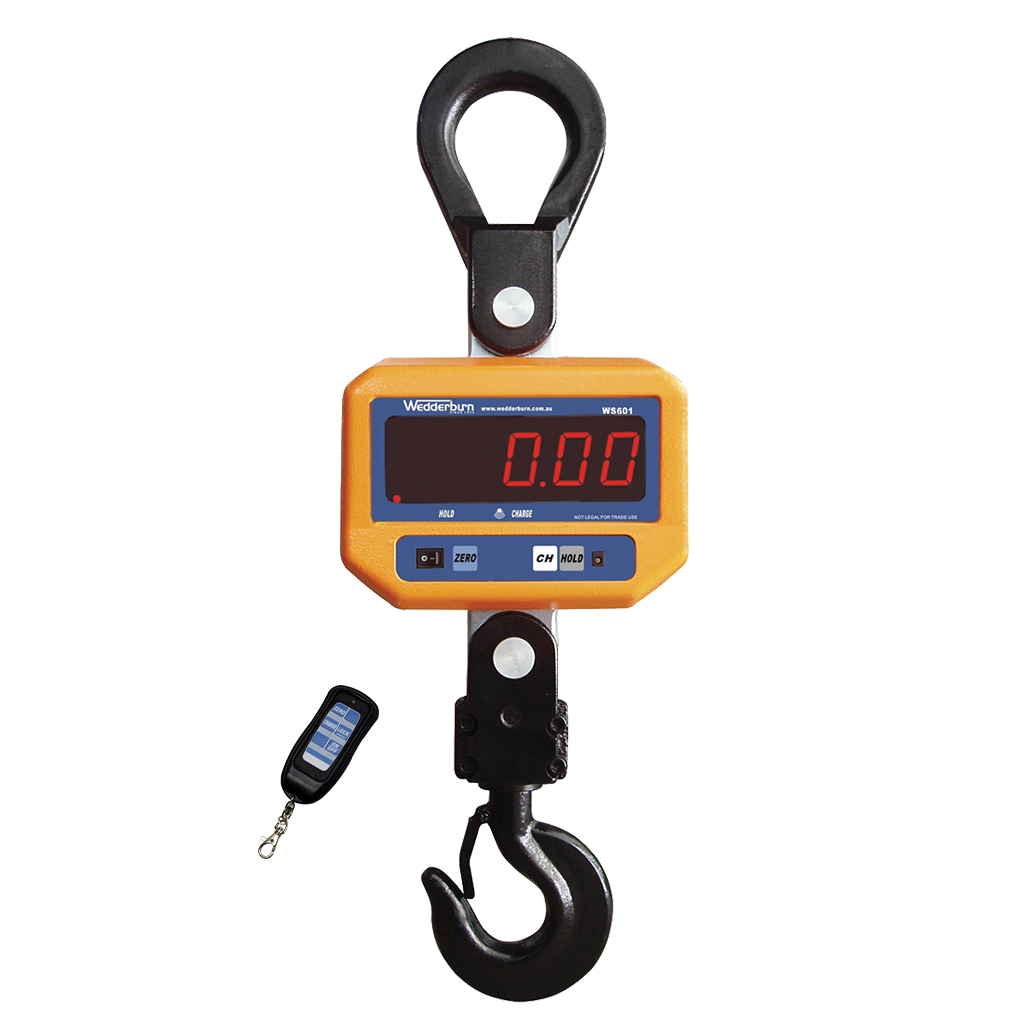

The triple range WS601 digital Crane Scale weighs up to 5 ton and features; cast aluminium alloyed housing, 360 degree swivel hooks, overload protection and a remote controller. This crane scale delivers a safe and efficient precise weighing solution for industrial environments.
