Digital Counting Scale

JAWS30030K
tick In stock
wishlist

Features
Specifications
Downloads
Q&A
  • easy to read 14mm high LCD display with backlight
  • large stainless steel weigh platform
  • high accuracy with 1/150,000 internal counting resolution and 1/30,000 display resolution
  • water resistant durable keyboard
  • choice of weighing units (g, kg, lb, %, pcs)
  • quantity accumulation
  • mains power with built-in rechargeable battery for up to 80 hours use
  • programmable set-points for LO/OK/HI checking function
  • built-in overload protection
  • replaceable clear protective cover

OPTIONS

  • RS232 interface
Legal for Trade Use No
Capacity 30 kg x 1 g
Scale Type Bench
Type of Display Digital Backlit LCD
Number of Displays 1
Weighing Units g, kg, lb, %, pcs
Checkweighing Function Yes
Counting Function Yes
Counting Resolution 1/150,000
Display Resolution 1/30,000
Power

Mains Power

Rechargeable Battery

Environment Suitability

Dry

Comms Port

Optional RS232

What is the difference between a "Counting Scale" and a scale that has a "Counting Function"?

There are significant differences between Counting Scales and Bench or Floor Scales with Counting Functionality and the differences impact both performance and price. Read our helpful guide on key differences  before making your purchasing decisions. Understanding Counting Scales Guide

Is this Counting Scale legal for trade use?

No, under New Zealand's Trade Measurement Standards, it is not permissible to certify Counting Functions of Scales legal for trade use.

What is the best sample size to use?

The sample size is relative to the final quantity you wish to count. If you want to count small quantities (100 pcs), then a sample size of 10 pieces is sufficient. If your final count quantity is large, then a larger sample will increase the counting accuracy.

Why do I get inconsistent counting results for quantities of the same product?

Counting inconsistencies are generally a result of poor sample sizes. Use a larger sample size to calculate the unit weight to increase counting accuracy. A counting scale's accuracy is determined by the accuracy of the parts it is counting. Parts with a large weight variance will result in higher counting errors.

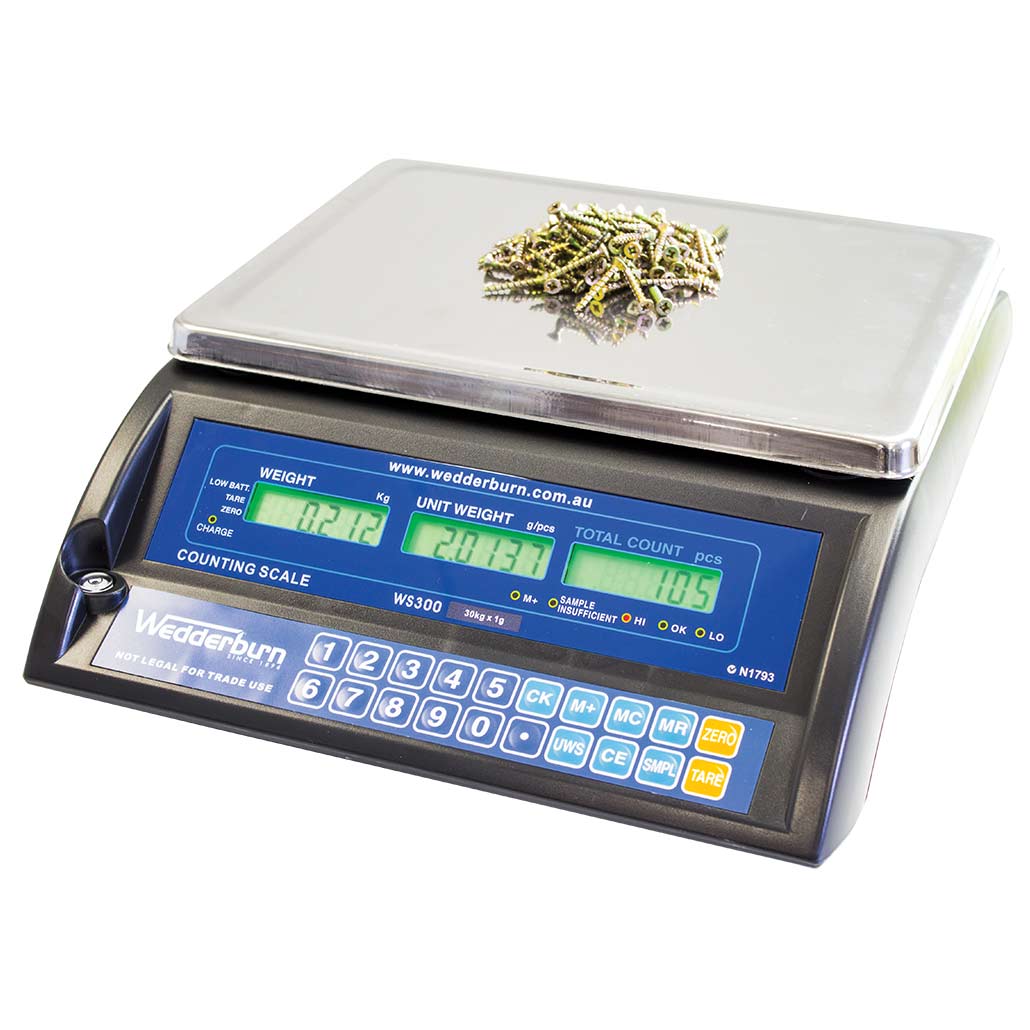

Digital Counting Scale

JAWS30030K

JAWS300 Digital Counting Scales deliver high accuracy with 1/150,00 counting resolution. This Counting Scale features a large stainless steel weighing platform, water resistant keyboard and the rechargeable battery means it is readily portable.

FEATURES AND SPECIFICATIONS arrow-blue-right

POA

Variations (select one model)
Spare Parts / Options (tick additional items required)

AC Power Adaptor 240V 180cm

OR0608


POA

Clear Protective Cover JAWS200 JAWS300

RD5959


POA

RS232 Interface Kit JAWS200 JAWS300

RD5976


POA

Current Selection

$0.00
