Compact Scale Base ENQUIRE NOW BUY NOW

TSS-YA Series

Features
Specifications
Downloads
  • legal for trade use (TS1471)
  • trade approval applies when connected to an approved indicator
  • maximum approved divisions 6000 d/range
  • mild steel base with stainless steel cover
  • choice of capacities to suit individual requirements
  • suitable for a wide range of applications
Legal for Trade Use

Yes when connected to an approved indicator

(TS1471)

Capacity Choices Please select preferred option from Variations
Max Approved Divisions 6,000 per range
Base Shape Square
Base Material Mild steel
Base Cover Material Stainless steel
Frame Design Single frame
Platter Lift Mechanism Not available
Loading Ramps Not available
Environment Suitability Dry
Ingress Protection Rating No

Compact Scale Base ENQUIRE NOW BUY NOW

TSS-YA Series

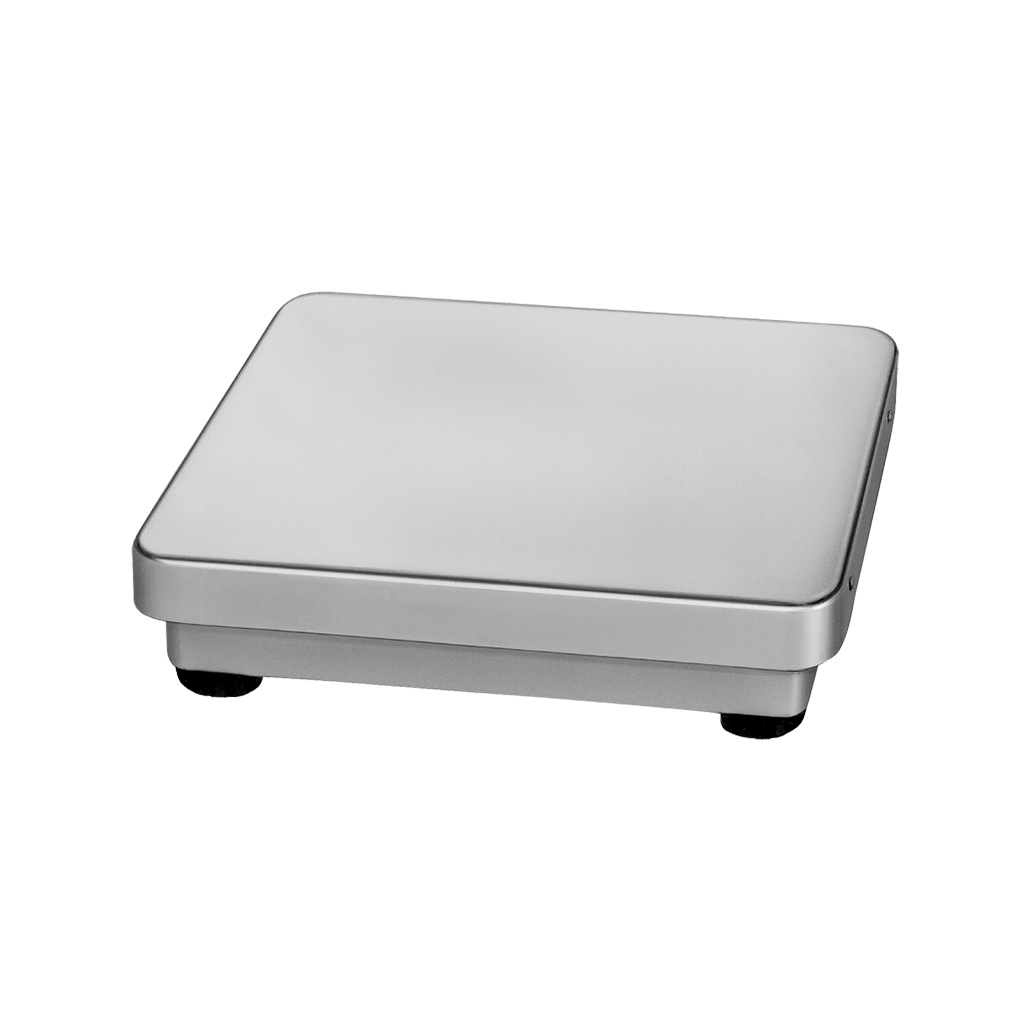

TSS-YA DIGI Scale Bases have a mild steel base and a stainless steel cover. They are trade approved when connected to an appropriate scale indicator and come in a choice of capacities to suit your individual requirements. Suitable for dry environments.

FEATURES AND SPECIFICATIONS

Price of Selection (NZ$ excl GST)

POA

Variations

TSS-YA30030K

Platform Size (mm): 380 (W) x 380 (D) x 90 (H)
Maximum Capacity: 30 kg
Graduation Interval: 5 g / 10 g

POA

TSS-YA60060K

Platform Size (mm): 380 (W) x 380 (D) x 90 (H)
Maximum Capacity: 60 kg
Graduation Interval: 10 g / 20 g

POA

TSS-YA150150K

Platform Size (mm): 380 (W) x 380 (D) x 90 (H)
Maximum Capacity: 150 kg
Graduation Interval: 20 g / 50 g

POA
