Automatic In-Line Tray Sealer ENQUIRE NOW

WFTMG2
wishlist

Features
Specifications
Downloads
  • top seal
  • ability to seal four trays at once or configured with dual moulds to seal two different tray sizes without having to change the moulds
  • pack up to 64 trays per minute (speed will vary depending on the size of trays being filled and sealed, and the functionality being used
  • small footprint
  • easy to use colour touch screen for operator efficiency
  • film roll is easily accessible for quick and safe roll changes
  • constructed from high grade stainless steel and anti-corroding aluminium
  • engineered to use both recyclable trays and recyclable film

For an impressive range of options, please refer to the product brochure under the downloads tab

Packaging Type Top Seal Tray Sealing
Packaging Rate

Up to 16 cycles per minute;

32 packs using two moulds, or

64 packs using four moulds at once

Film Width 430 mm maximum
Film Diameter 280 mm maximum
Film Core 75 - 80 mm maximum
Tray Height

100 mm maximum with Vacuum / Gas

110 mm maximum without Vacuum / Gas

Operator Panel Touch Screen
Power Required 400 V 3 phase + n 50 / 60 Hz, 5 Kw
Air Required 7 bar (100 psi) 20,000 litres / hr (12 cfm)
Vacuum Pump 60 cubic metres per hour
IP Rating IP65
Overall Dimensions (mm) 779 (W) x 3658 (L) x 1862 (H)
Net Weight 750 kg approximately



*Tray Dimensions. Maximum Height is detailed above. Refer to the product brochure for various tray depth and width options.

Automatic In-Line Tray Sealer ENQUIRE NOW

WFTMG2

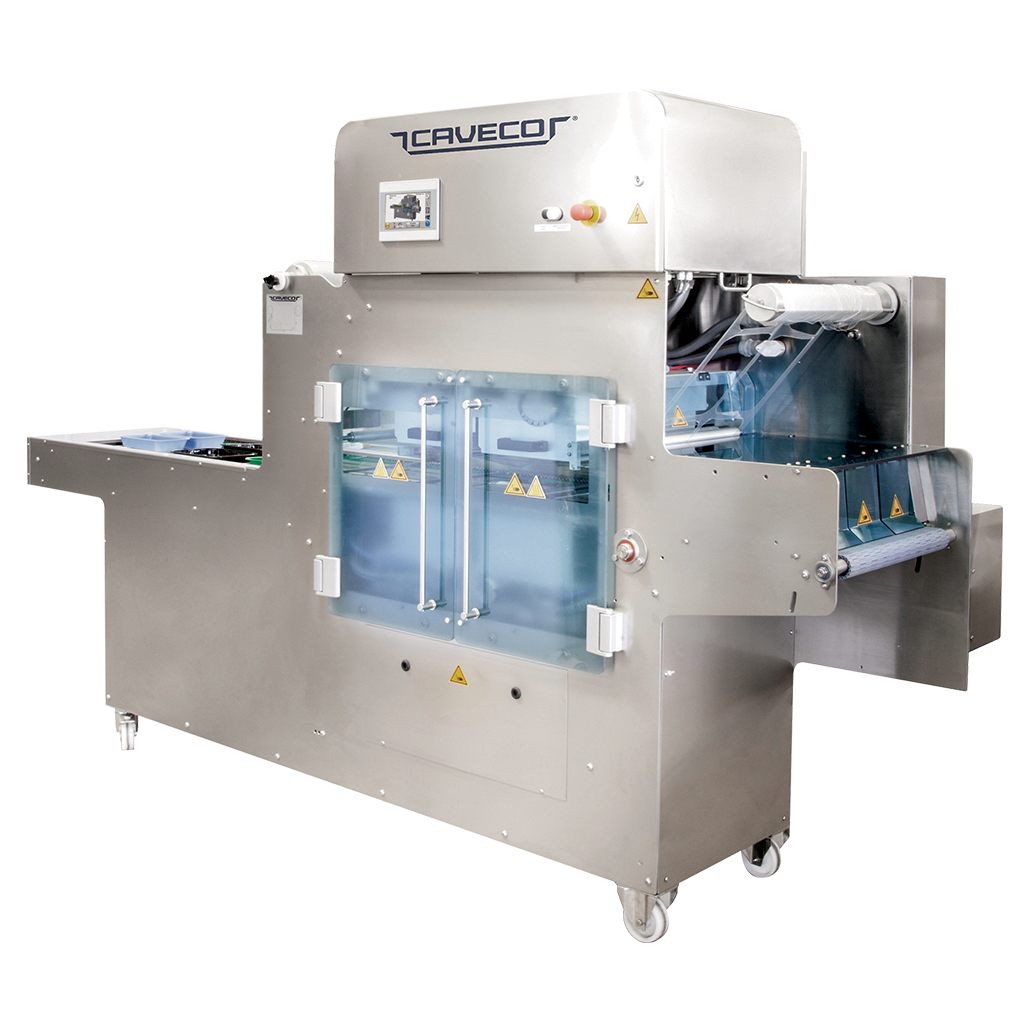

With the ability to seal two different tray sizes without changing moulds, our WFTMG2 In-Line Automatic Tray Sealer is in a class of its own. Capable of sealing up to four trays at once, it's ideal for high demand food packing environments.

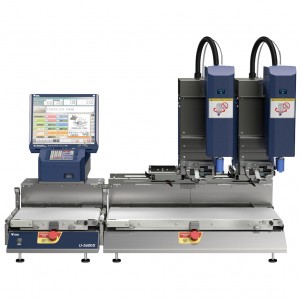

Combine the WFTMG2 In-Line Tray Sealer with our TSLI5600B2 In-Line Weigh Labeller to create a complete trade approved tray sealing weigh labelling system configured to your production requirements.

FEATURES AND SPECIFICATIONS arrow-blue-right

POA

Variations (select one model)
Spare Parts / Options (tick additional items required)

In-Line Weigh Labelling System

LI5600B2


POA
