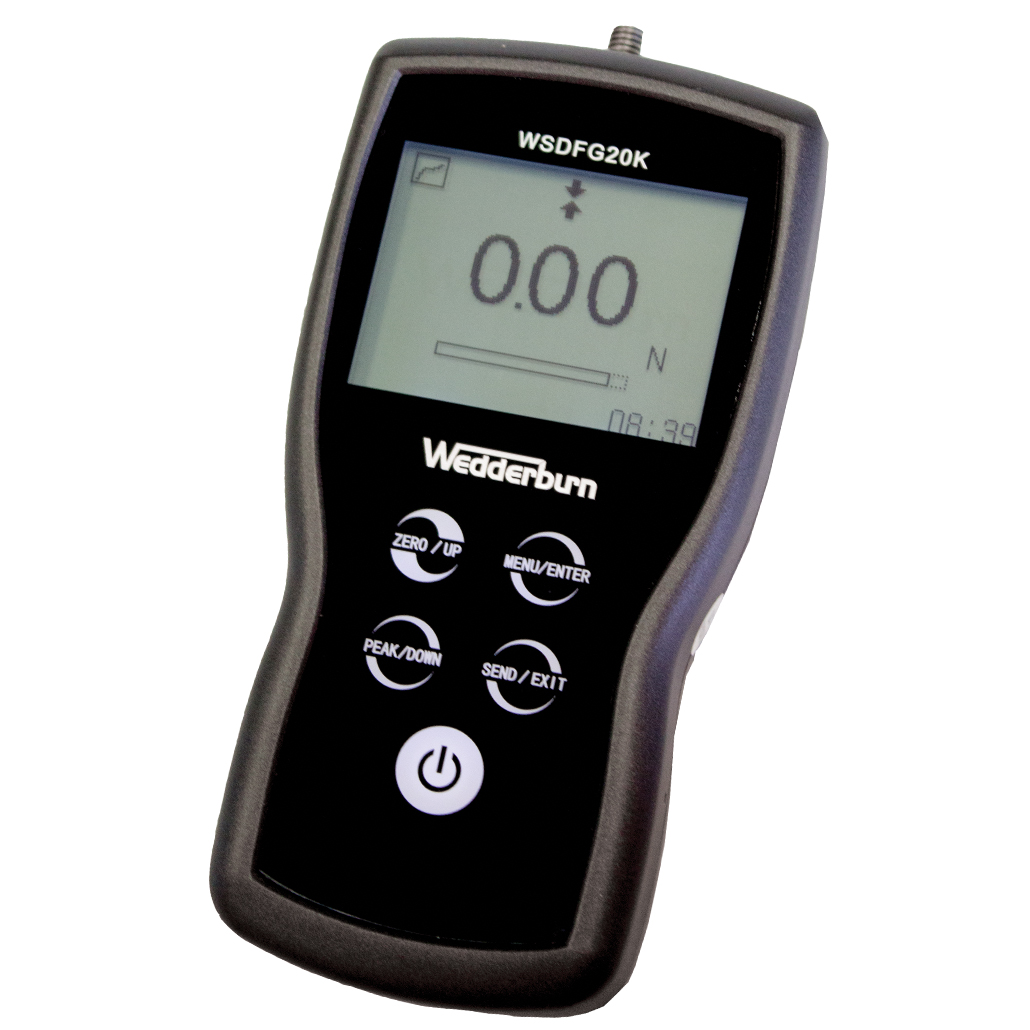

Digital Force Gauges
WSDFG Series
Features
Specifications
Downloads
- durable heavy-duty metal construction
- 6 attachments, including hook, flat tip, conical tip, chisel tip, notched tip, and extension shaft
- LCD screen with LED backlight and automatic reversible display
- selection of units, N, kgf, lbf, gf, ozf, mN
- peak hold, auto peak and track modes
- set points, programmable Hi and Lo limits
- Data Capture Software
- overload alarm
- touch key operation
- hard plastic carrying case
- low battery indications
OPTION
- test stand
| Legal for Trade Use | No |
| Accuracy | ±0.2% F.S., ±1 LSD |
| Selectable Units | mN, N, gf, kgf, ozf and lbf (selectable) |
| Display | 160*128 dot matrix LCD with LED backlight automatic reversible display |
| Overload Capacity | 150% of F.S (LCD flashes beyond 110% of F.S.) |
| Overload Protection | Overload protection mechanism to prevent damage |
| Measurement Method | Peak, auto-peak or track mode |
| Data Sampling Rate | 1000 Hz |
| Display Update Rate | 10 times/second |
| Memory | 1000 data |
| Set Point | Programmable high and low limits |
| Comms Ports | RS232 and USB |
| Power | 3.6VDC 800mAH Ni-MH rechargeable batteries |
| Battery Life | Approximately 16 hours continuous use per full charge |
| Battery Indicator | Display flashes battery icon when battery is low |
| Charger / Adaptor | Universal USB/BM charger, Input: 110~240VAC |
| Temperature Effects | <0.03% FS per °C |
| Outputs | RS-232, “Within” set point output, “Under or over” set point output |
| Operating Temperature | -10 to 40 °C |
| Operating Relative Humidity | 20 to 80% |
| Storage Temperature | -20 to +500C |
| Storage Relative Humidity | 5 to 95% |
| Overall Dimensions (mm) | 145 (H) x 73 (W) x 35 (D) |
| Net Weight of Machine | 0.7 kg (1.5lb) |
| Accessories included |
AC adapter/charger |
Digital Force Gauges
WSDFG Series
Our WSDFG Series Digital Force Gauges are highly accurate and engineered for robust durable performance when measuring tension, strain and pull force. They come complete with several attachments.
FEATURES AND SPECIFICATIONS
POA
