Compact Scale Base ENQUIRE NOW BUY NOW
TSS-YBS
- legal for trade use (TS1471)
- trade approval applies when connected to an approved indicator
- maximum approved divisions 6000 d/range
- stainless steel base and cover
- choice of capacities to suit individual requirements
- suitable for a wide range of applications - including harsh / wet environments
| Legal for Trade Use |
Yes when connected to an approved indicator (TS1471) |
| Capacity Choices | Please select preferred option from Variations |
| Max Approved Divisions | 6,000 per range |
| Base Shape | Square |
| Base Material | Stainless steel |
| Base Cover Material | Stainless steel |
| Frame Design | Single frame |
| Platter Lift Mechanism | Not available |
| Loading Ramps | Not available |
| Environment Suitability | Dry, Wet, Harsh |
| Ingress Protection Rating | No |
Compact Scale Base ENQUIRE NOW BUY NOW
TSS-YBS

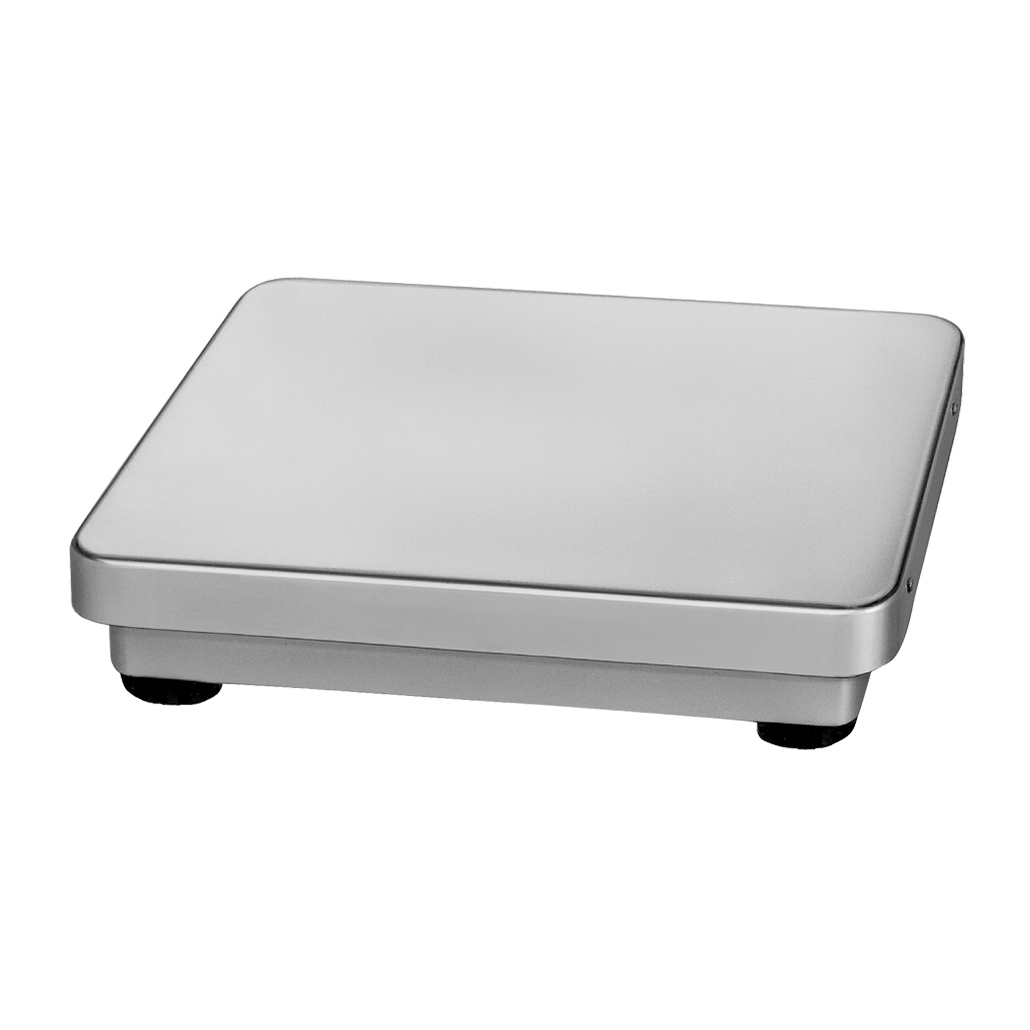

TSS-YBS DIGI Scale Bases have a stainless steel base and platform cover. They are trade approved when connected to an appropriate scale indicator and are suitable for harsh and wet environments.
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
TSS-YBS60K
Platform Size (mm): 480 (W) x 480 (D) x 115 (H)
Maximum Capacity: 60 kg
Graduation Interval: 10 g / 20 g
POA
TSS-YBS150K
Platform Size (mm): 480 (W) x 480 (D) x 115 (H)
Maximum Capacity: 150 kg
Graduation Interval: 20 g / 50 g
POA
