Weigh Seal Label MAP Tray Sealer ENQUIRE NOW BUY NOW

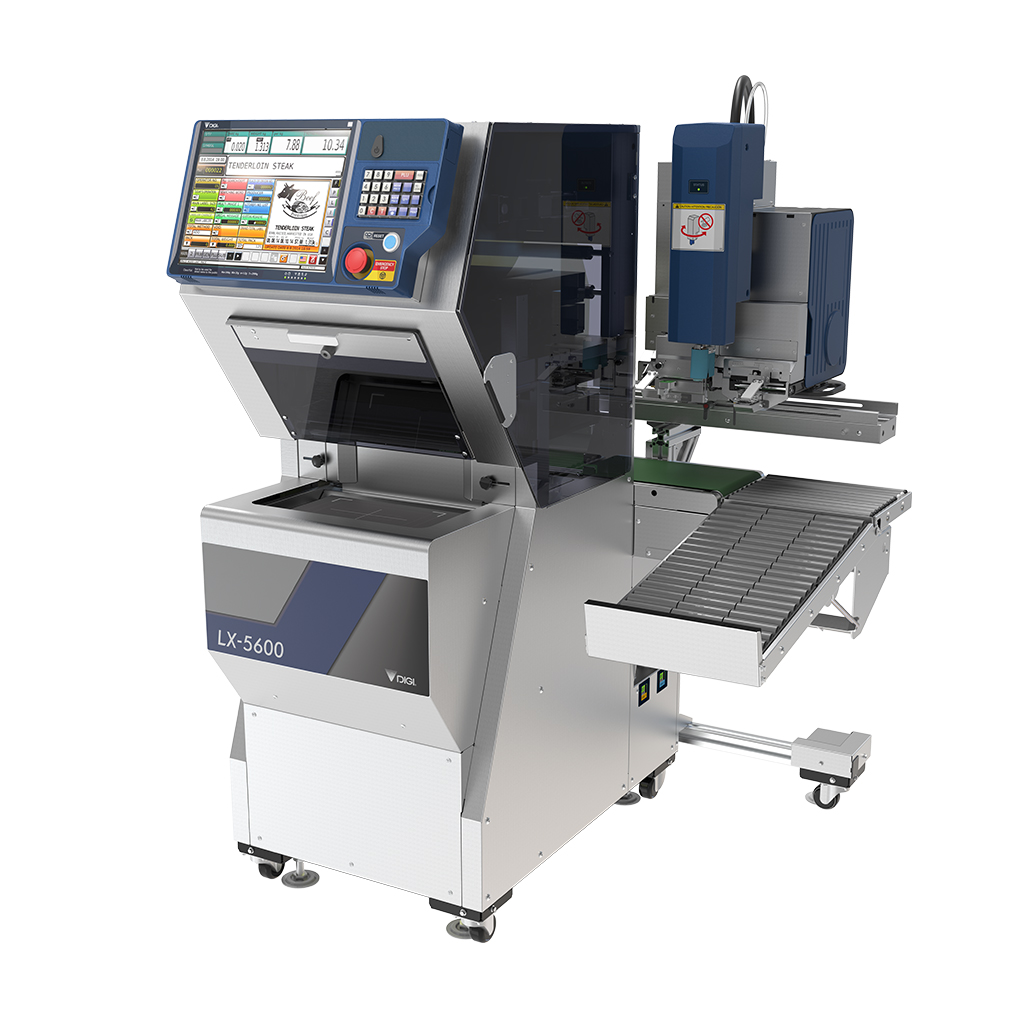

LX-5600
- legal for trade-use weighing (TS2176)
- weigh, gas flush, top seal and label fresh foods in seconds
- seal up to 17 packs per minute without gas flushing (up to 12 packs per minute with gas flushing). Time depends on film, gas and tray size.
- automatically trims and rewinds film salvage
- easy and simply mould change
- integrated mould storage
- large 15” full colour touch screen
- small footprint of just 1.3 m2 allows for flexible installation layouts, easily fitting into backroom spaces
- several labeller options: single, double or triple. Time and label costs are saved through multiple labelling options as two or three labels are applied all in one pass when the tray is weighed and sealed
- easily switch between two types of gases for each PLU
- PLU can be programmed with the correct gas type or no gas
- linerless labelling and die-cut label models available
| Packaging Type | Top Seal Tray Sealing |
| Packaging Rate* |
Top Seal Only - up to 17 packs per minute Gas Flushing - up to 12 packs per minute |
| Film Width | 260 - 360 mm |
| Film Diameter | 250 mm maximum |
| Mould Sizes |
Various moulds available. Please refer to product brochure. |
| Label Types | Thermal Die-Cut and Thermal Linerless models available |
| Label Sizes | Please refer to product brochure. |
| Operator Panel | Touch Screen |
| Power Required | Single phase, 200 - 400 V, 50 Hz, 6 A |
| Overall Dimensions (mm) | 1050 (W) x 1224 (L) x 1443 (H) |
| Net Weight | 230 kg approximately |
* Packing speed will vary depending on tray size, film and gas fill time.
Weigh Seal Label MAP Tray Sealer ENQUIRE NOW BUY NOW
LX-5600
A World First All-in-One MAP Tray Sealer with trade approved weighing and price labelling.
The LX-5600 breaks new ground as a world-first Fully Automatic Tray Sealer capable of trade approved weighing, MAP gas flushing, top tray sealing and labelling fresh food in one quick pass.
Extend shelf life, minimise spoilage, safeguard food safety and delight your customers with leakproof packaging. LX-5600 Weigh-Seal-Label machines deliver all that in one compact package that saves on floor space, packaging film, power consumption and food-safe gas. The time-saving design means operators can easily switch between gases for each PLU and change moulds quickly without specialised training.
Download the brochure for more details or contact your local Wedderburn team and discuss how the LX-5600 can help unlock the performance potential of your backroom with efficiency gains and reduced running costs.
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
Weigh Seal Label MAP Tray Sealer
MAP Capable: Yes
Tray Dimensions Max: 300 mm (W) x 210 mm (D) but various moulds available
POA
