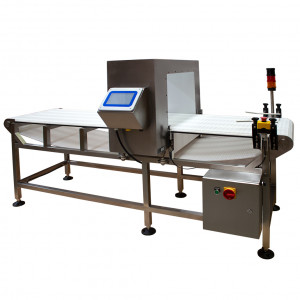

In-Line Metal Detector PU Belt ENQUIRE NOW BUY NOW
WMD-PU Series
- PU conveyor belt
- large 7 inch touch screen interface
- programmable memory stores up to 90 items
- 4 different operating levels with password protection
- program and QA data backup via USB
- remote control access via ethernet
- easy belt removal for cleaning
- automatic rejection with reject confirmation (optional)
- robust stainless steel frame with height adjustable legs
For further information on aperture sizes, belt types, test wands and rejection systems, please download the product brochure.
| Theory | Balanced coil |
| Aperture Size | Various aperture sizes are available. Please download the product brochure for more details. |
| Belt Speed | 10 - 40 metres per minute |
| Rejection Systems | Choices include; air blow, swing arm, push arm and drop flap |
| Alarm Type | Buzzer and Lamp |
| Power | 230 V 50 - 60 Hz |
| Overall Dimensions (mm) | Will depend on the machine configuration |
| Net Weight of Machine | Approximately 200 kg |
In-Line Metal Detector PU Belt ENQUIRE NOW BUY NOW
WMD-PU Series

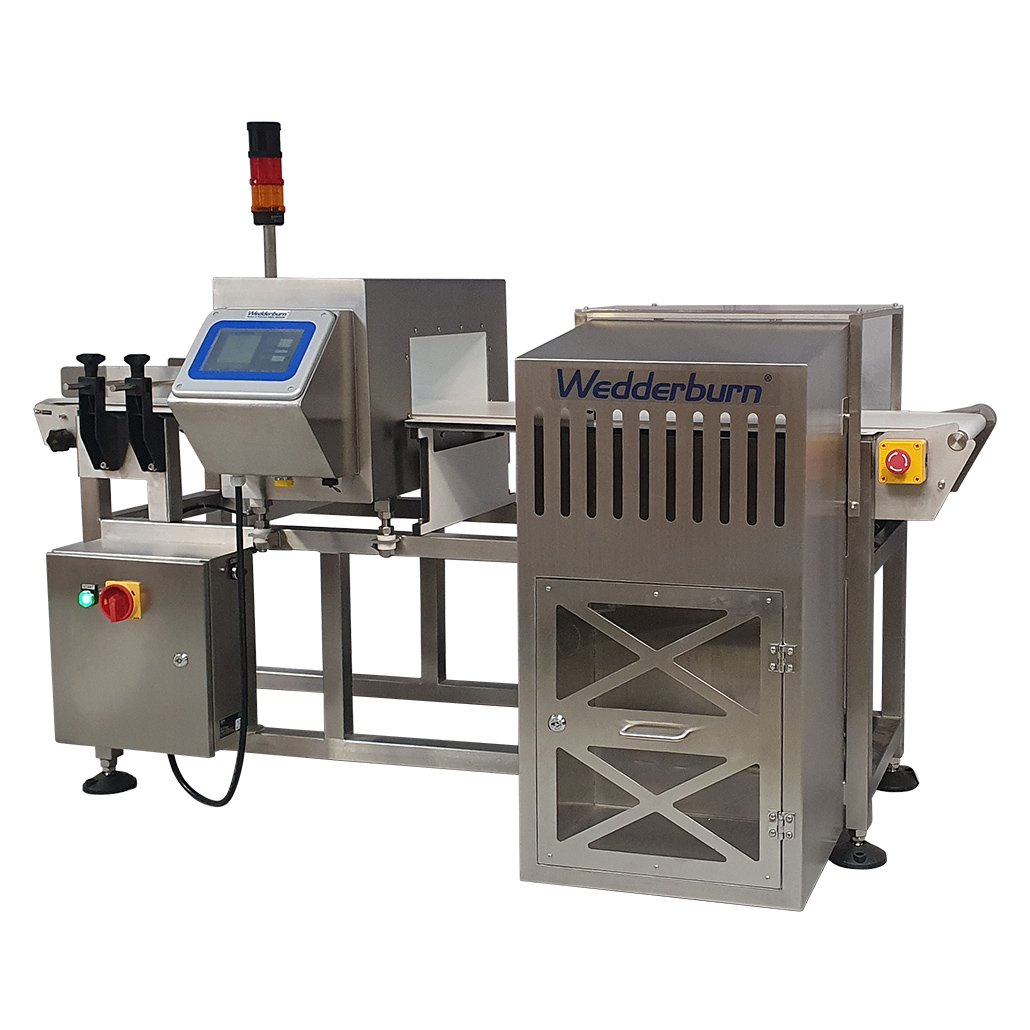

WMD Series Industrial Metal Detectors will reliably detect metallic contaminants in product. Each machine comes standard with a buzzer alarm that triggers if any metal particle deposits are detected and the highly sensitive metal detection system enables delivery of contaminant-free product to your end customer.
Our polyurethane (PU) conveyor belts are easy to wipe down and they offer good resistance to wear, abrasion and some fluids. They are a friction drive system and ideal for light weight packets and food.
A choice of aperture widths and rejection systems means Wedderburn can deliver a metal detection system that suits your product and operating environment.
Metal Detection Test Pieces are available to regularly test your metal detector machine is operating effectively. View Test Pieces
FEATURES AND SPECIFICATIONS
Price of Selection (NZ$ excl GST)
POA
Variations
WMD350-PU
Aperture Width (mm): 350
Aperture Height (mm): 100 - 400
POA
WMD400-PU
Aperture Width (mm): 400
Aperture Height (mm): 100 - 400
POA
WMD450-PU
Aperture Width (mm): 450
Aperture Height (mm): 100 - 400
POA
WMD500-PU
Aperture Width (mm): 500
Aperture Height (mm): 100 - 400
POA
WMD600-PU
Aperture Width (mm): 600
Aperture Height (mm): 100 - 400
POA
