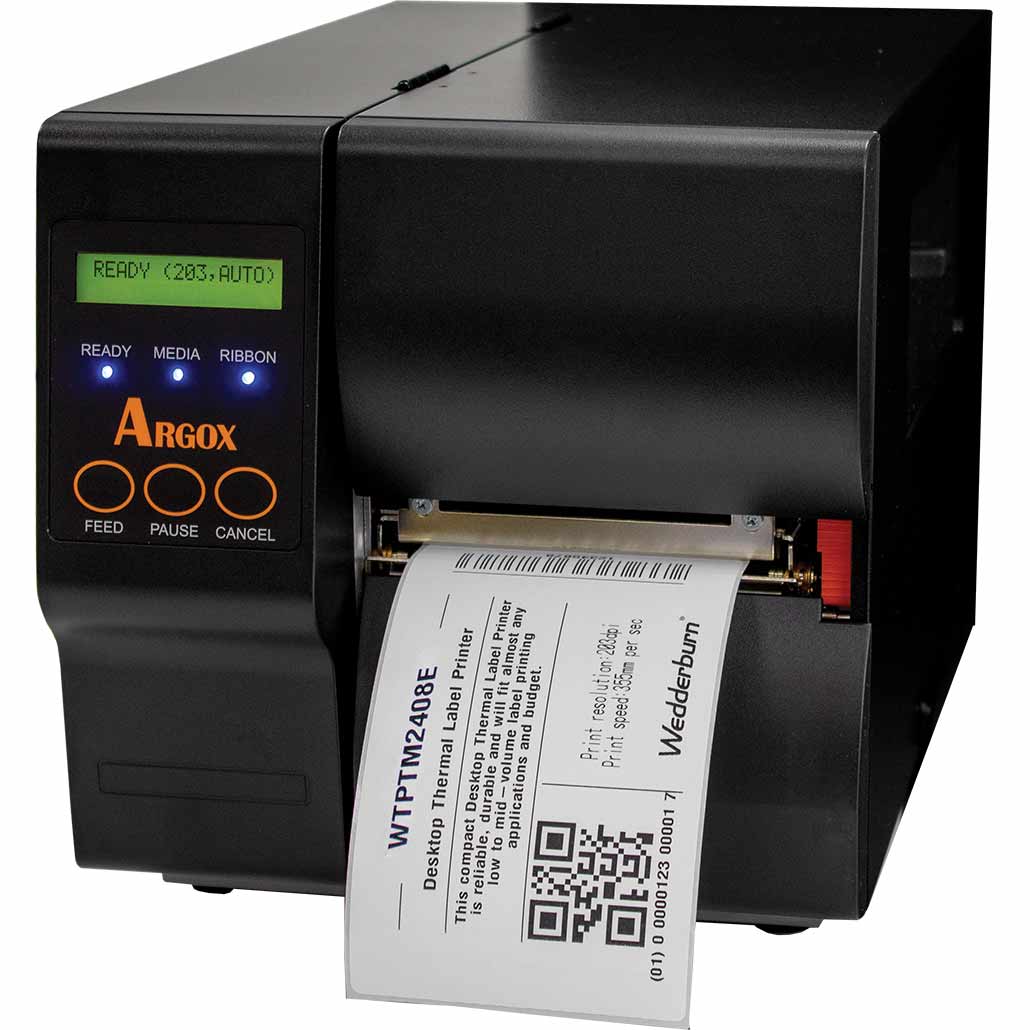

Industrial Thermal Label Printer
WTPTM2408E
- thermal direct or thermal transfer label printing
- 203 dpi print resolution
- LCD display with 3 button menus
- large ribbon capacity
- RS232, USB and Ethernet Interface
- 1D and 2D barcode printing
- gap transmissive sensor (position adjustable)
- black mark reflective sensor (position adjustable)
- head open sensor
- ribbon end sensor
- compatible for use with; continuous, die-cut, fan-fold, tag, notched, black mark, perforated (outside wound) media types
- Bartender Ultralite label design software
| Print Method | Direct Thermal and Thermal Transfer |
| Printer Type | Industrial |
| Print Head Type | Flat Head |
| Maximum Print Speed | 203 mm per second |
| Maximum Print Width | 108 mm |
| Maximum Label Width | 114 mm |
| Maximum Label Roll Size | 208 mm OD |
| Maximum Ribbon Length | 450 m or 81 mm OD |
| Maximum Ribbon Width | 112 mm |
| Ribbon Wind Direction | Inside or Outside |
| Ribbon Core Size | 25 mm |
| Communication Protocol |
Serial, USB, Ethernet Parallel available as an option WiFi available as a factory fitted option |
| Peel and Present |
Additional Option |
| Internal Rewinder |
Additional Option |
| Overall Dimensions (mm) |
250 (W) x 418 (D) x 263 (H) |
| Net Weight |
11 kg |
What's the best way to care for my thermal printhead?
Thermal printheads impact print quality, are very delicate and can be costly to replace. Care is needed when cleaning to ensure operator safety and prevent unnecessary damage to the printhead. Please see the guidelines published in our Info Centre. Click here to view our Thermal Printhead Care instructions.
Industrial Thermal Label Printer
WTPTM2408E
WTPTM2408E Industrial Thermal Label Printer engineered for high volume label printing. Featuring high print speeds of up to 203 mm (8 inches) per second, heavy duty die cast aluminium design, large 450 m ribbon capacity and a range of interface options.
FEATURES AND SPECIFICATIONS
POA
